ELD Replacement

Do the battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
Remove the upper cover (A), then remove the two positive (+) terminals (B).

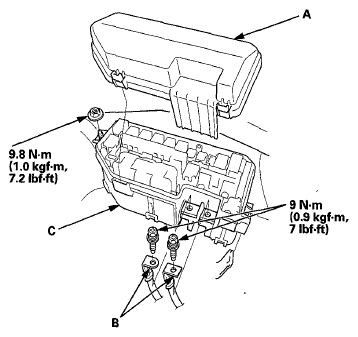

Fig 1: Underhood Fuse Relay Box, Upper Cover And Positive Terminals With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the under-hood fuse/relay box (C) from the bracket.
Remove the lower cover (A).

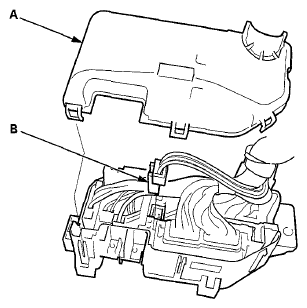

Fig 2: Identifying Lower Cover And ELD 3P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the ELD 3P connector (B).
Remove the fuses (A, B)

Fig 3: Fuses With Mounting Bolts Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the three lock tabs (A), then remove the ELD (B).

Fig 4: Identifying ELD With Lock Tabs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
Do the battery terminal reconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
