MAF Sensor/IAT Sensor Replacement
Disconnect the MAF sensor/IAT senor 5P connector (A).

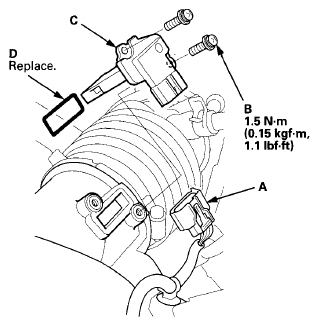

Fig 1: MAF Sensor/IAT Sensor And Connector, Screws And O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws (B).
Remove the MAF sensor/IAT sensor (C).
Install the parts in the reverse order of removal with a new O-ring (D).
