CMP Sensor Replacement
- Remove the timing belt (see
TIMING BELT REMOVAL
).

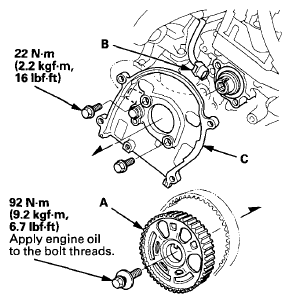

- Remove the front camshaft pulley (CMP sensor pulse plate) (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the CMP sensor connector (B), then remove the back cover (C).
- Remove the CMP sensor (A) from the back cover.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the parts in the reverse order of removal. Install the timing belt (see
TIMING BELT INSTALLATION
).
- Do the CKP pattern clear/CKP pattern learn procedure (see
CKP PATTERN CLEAR/CKP PATTERN LEARN
).
