Without Keyless Access System

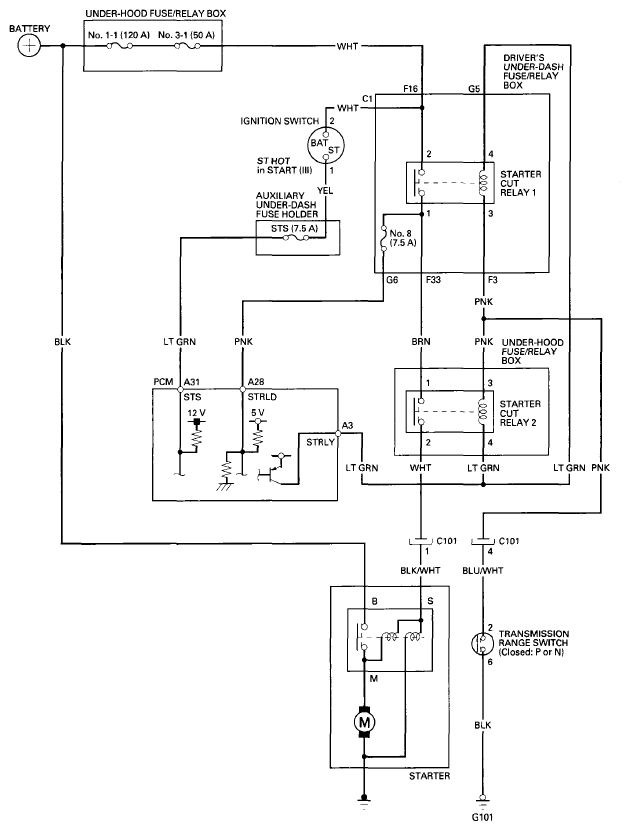

Fig 1: Starting System - Circuit Diagram (Without Keyless Access System)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
