With Keyless Access System

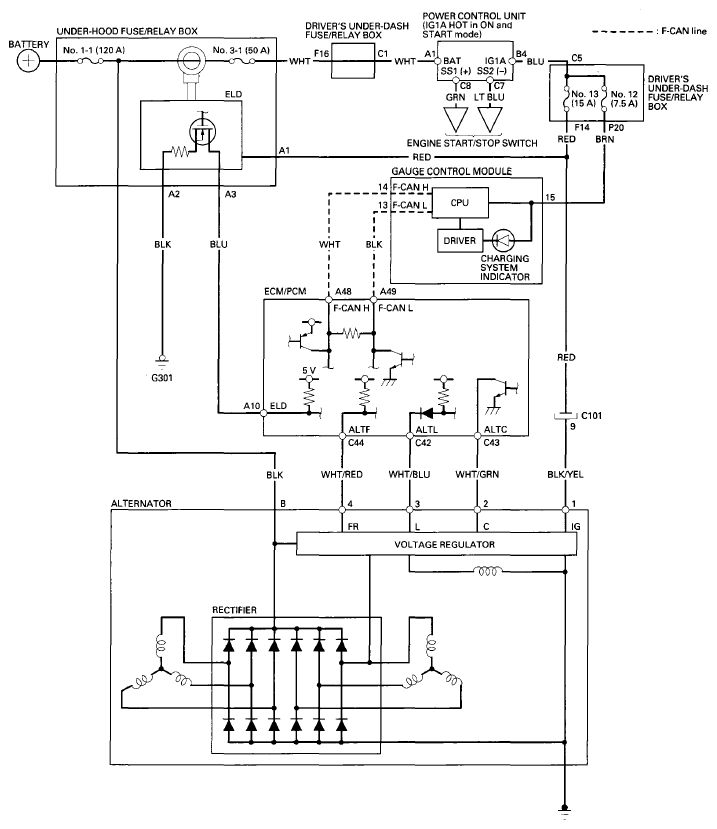

Fig 1: Charging System - Circuit Diagram (With Keyless Access System)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
