With Navigation

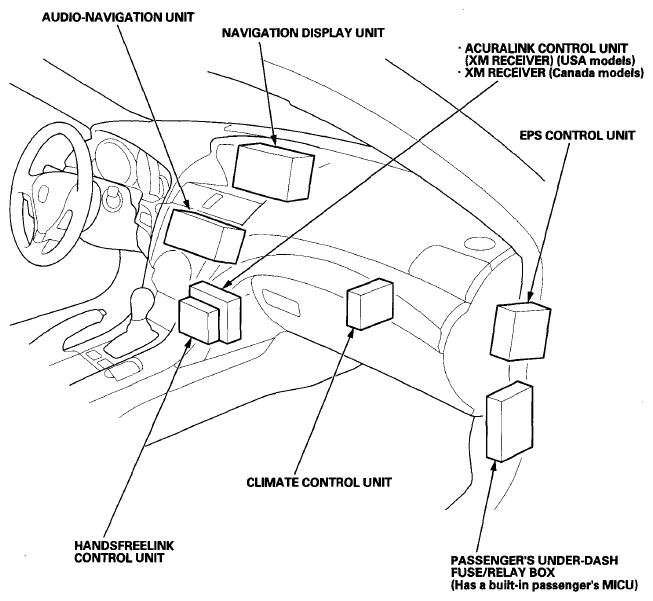

Fig 1: Identifying Dashboard With Navigation
G08067451Courtesy of AMERICAN HONDA MOTOR CO., INC.
