Exploded View

  1. Transmission - Exploded View

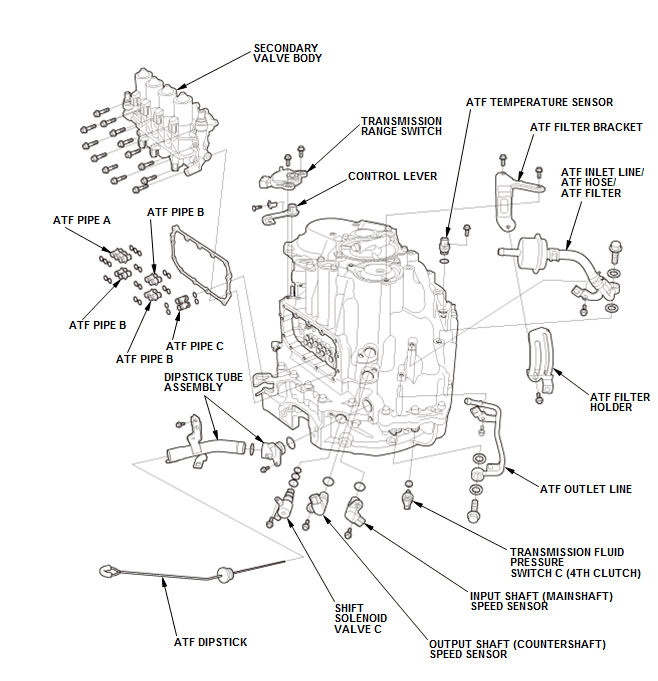

    Exploded View

    GHH69752Courtesy of HONDA, U.S.A., INC.

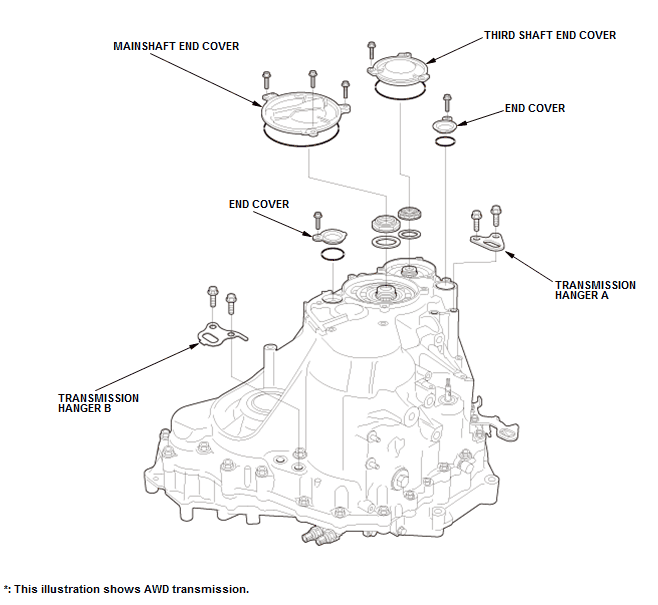

    Exploded View

    GHH69753Courtesy of HONDA, U.S.A., INC.

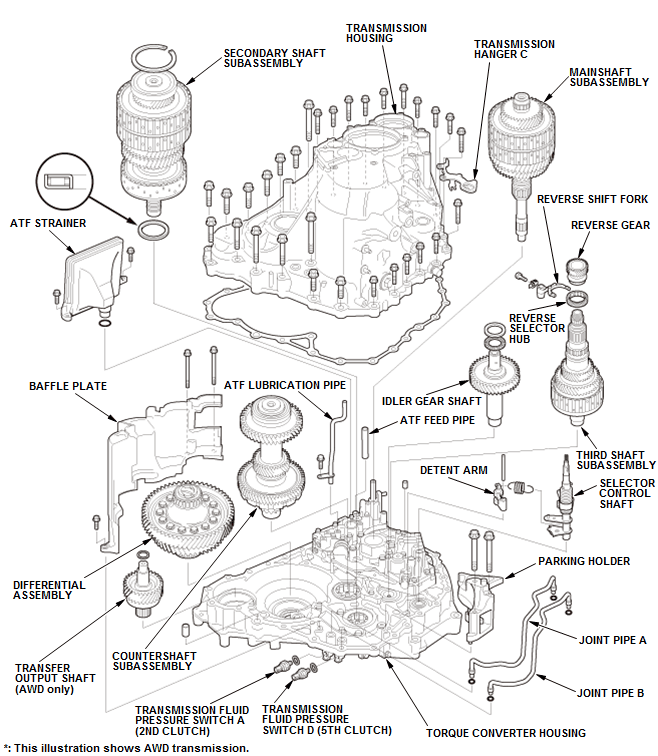

    Exploded View

    GHH69754Courtesy of HONDA, U.S.A., INC.

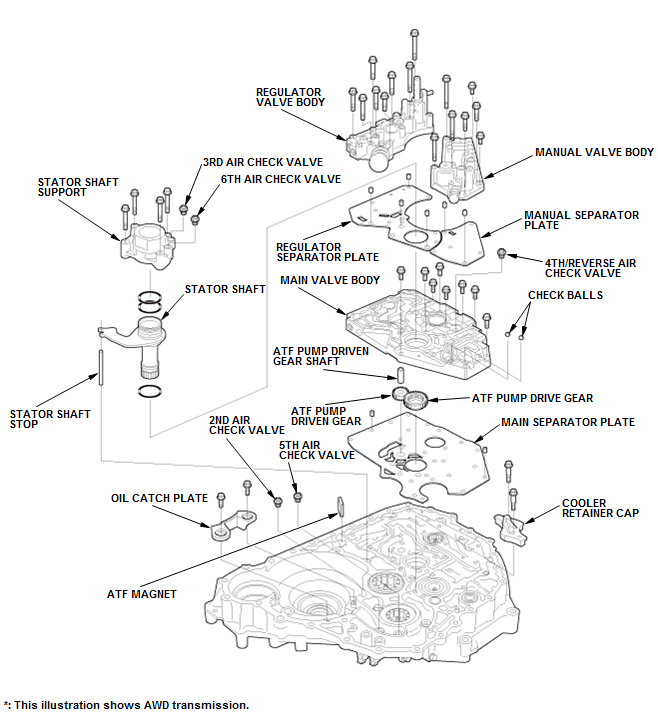

    Exploded View

    GHH69755Courtesy of HONDA, U.S.A., INC.
