Front Bank (Bank 2): A/T

  1. Disconnect the front secondary HO2S 4P connector (A), and remove the harness clamps (B) and the bolt (C).
    Fig 1: Front Secondary HO2S 4P Connector, Harness Clamps And Bolt With Torque Specifications
    G08069583Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Raise the vehicle on a lift.
  3. Remove front secondary HO2S (A).

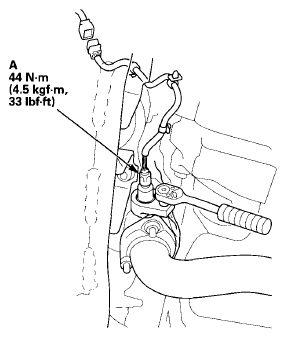

    Fig 2: Front Secondary HO2S With Torque Specifications
    G08069584Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the parts in the reverse order of removal.
