Circuit Diagram

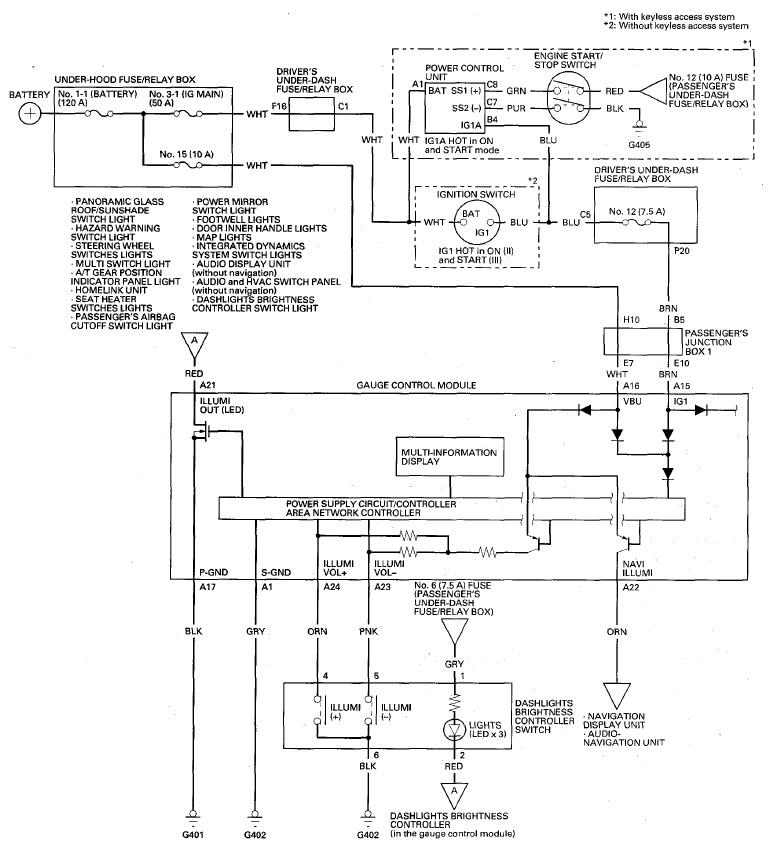

Fig 1: Dashlights Brightness Controller Circuit Diagram

G08076837

Courtesy of AMERICAN HONDA MOTOR CO., INC.
