Front HFL-ANC/Active Sound Control Microphone (Without Navigation) Connector End View

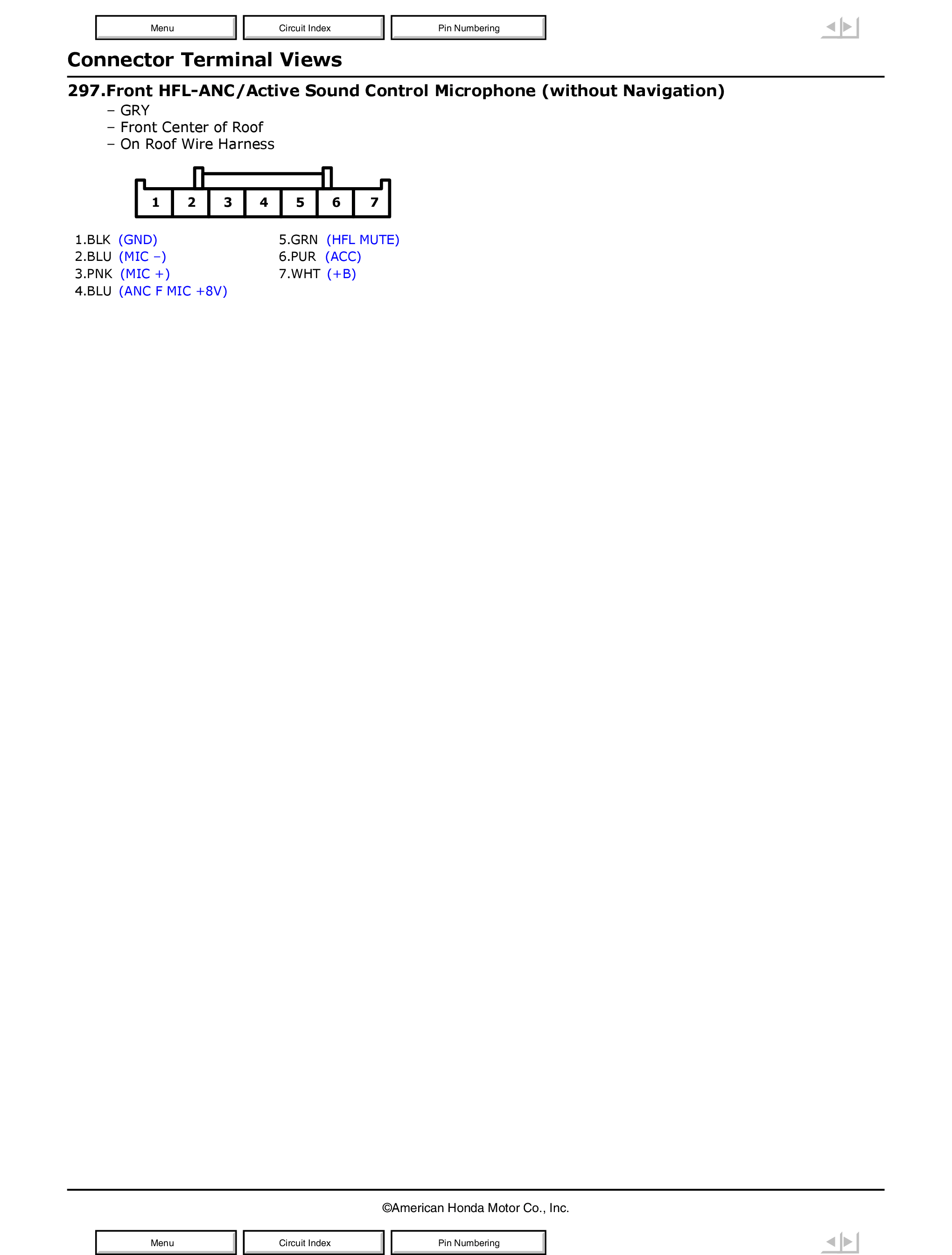

Fig 1: Front HFL-ANC/Active Sound Control Microphone (Without Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
