Electric Steering Lock (With Keyless Access System) Connector End View

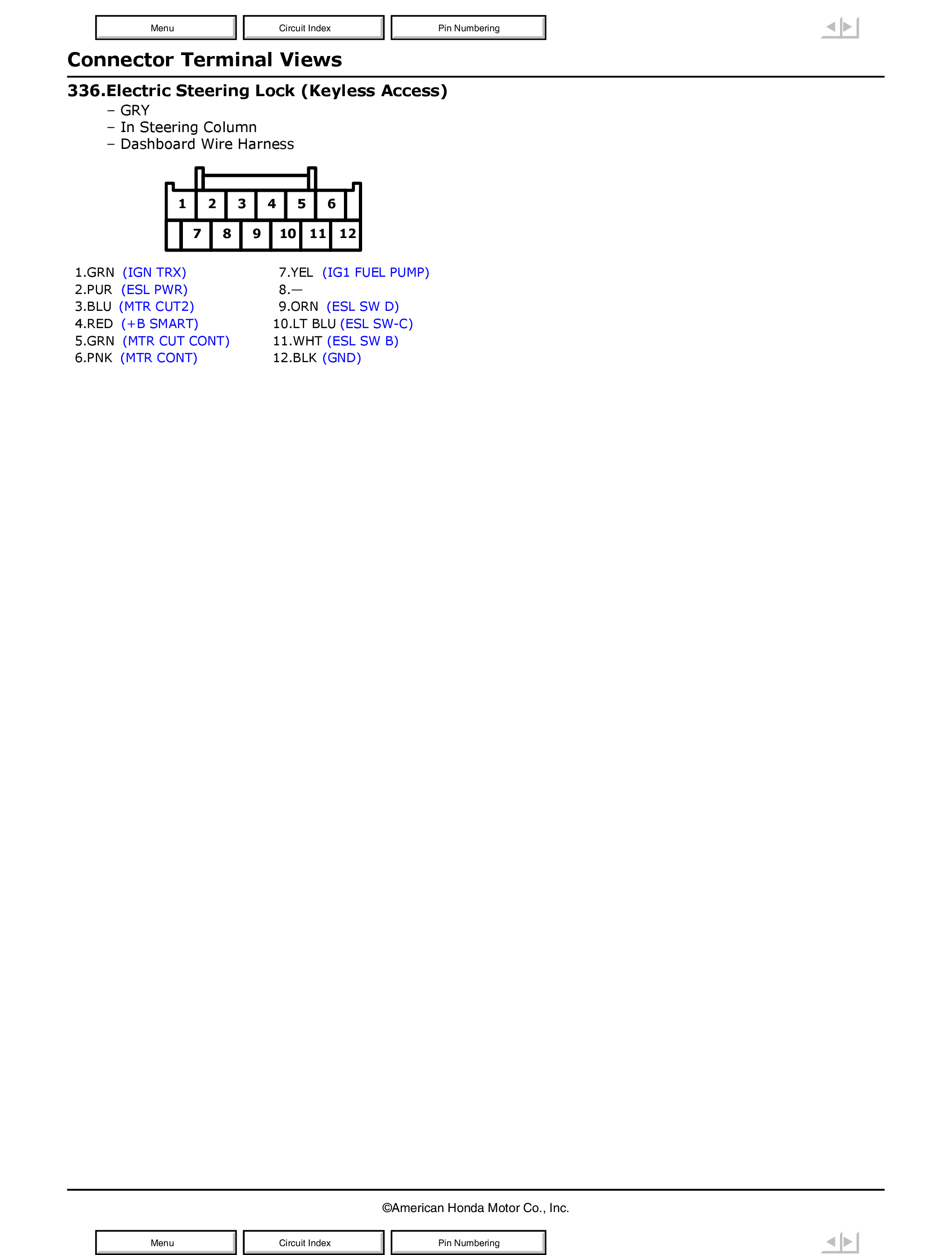

Fig 1: Electric Steering Lock (With Keyless Access System) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
