Component Location Index

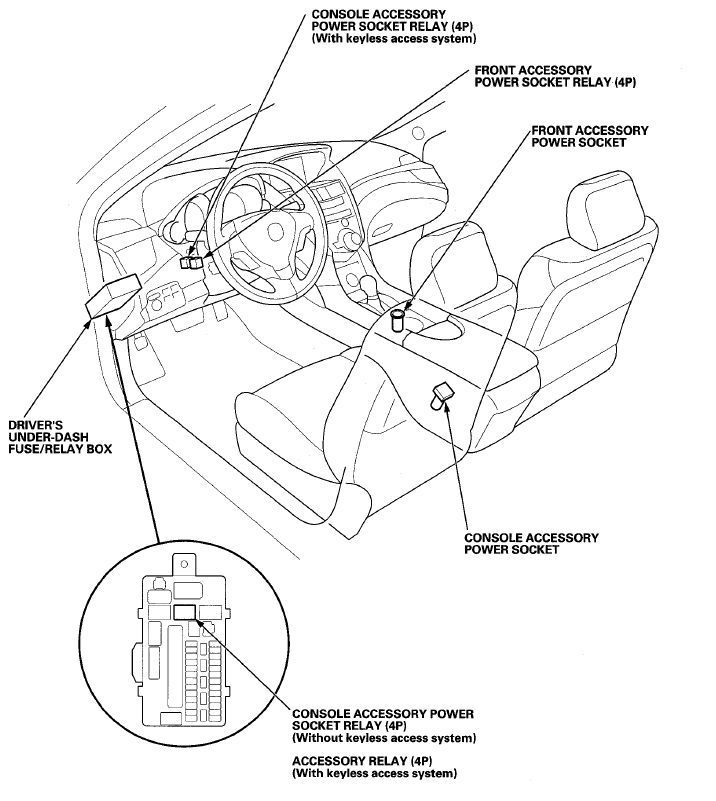

Fig 1: Identifying Accessory Power Sockets Component Location
G08076914Courtesy of AMERICAN HONDA MOTOR CO., INC.
