Solar Sensor: Service and Repair

Sunlight Sensor Replacement

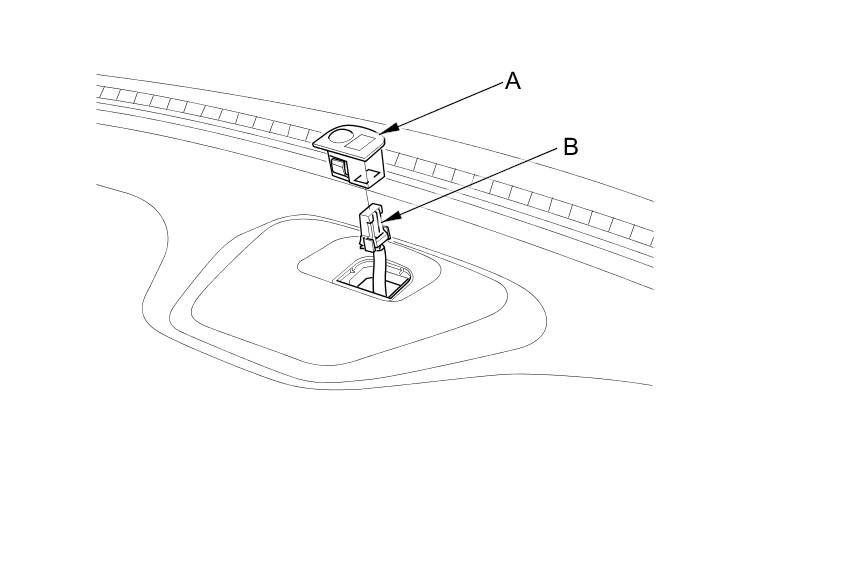

1. Pull out the sunlight sensor (A) from the speaker lid, then disconnect the connector (B). Be careful not to damage the sensor or the dashboard.

2. Install the sensor in the reverse order of removal.
