View 298 - Front HFL-Navigation-ANC/Active Sound Control Microphone Connector View (Navigation)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

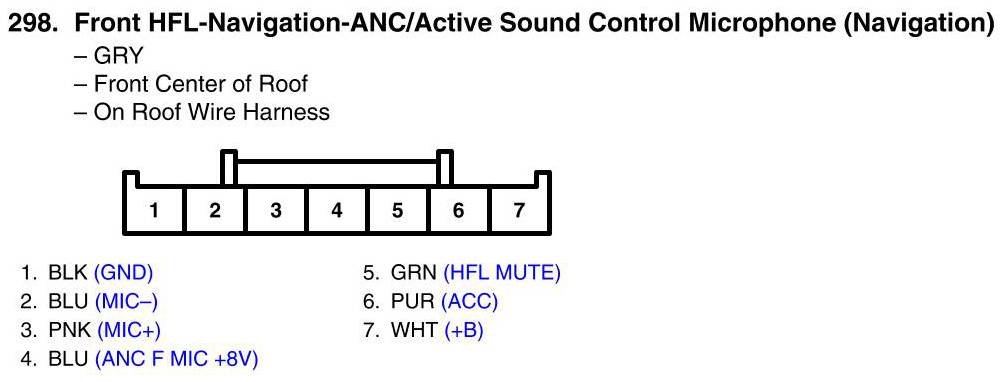

View 298 - Front HFL-Navigation-ANC/Active Sound Control Microphone Connector View (Navigation)
