Adaptive Cruise Control (ACC) Combination Switch/Distance Switch Removal/Installation

Adaptive Cruise Control (ACC) Combination Switch/Distance Switch Removal/Installation

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

1. Remove the steering wheel Steering Wheel Removal.

2. Remove the paddle shifter Paddle Shifter Replacement.

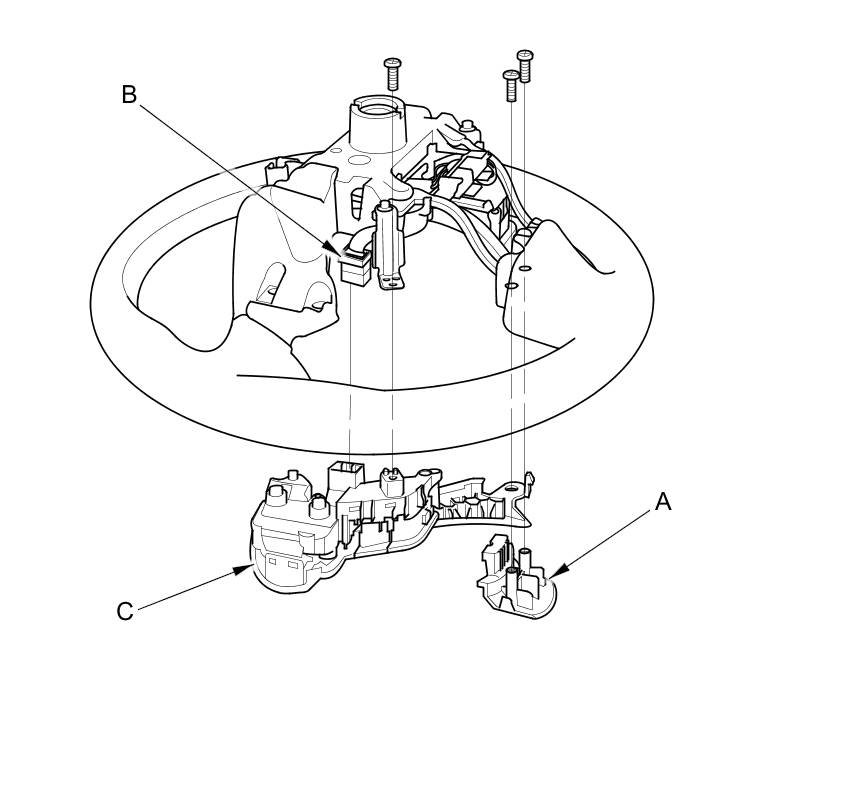

3. Remove the center trim (A).





4. Disconnect the 12P connector (B), and remove the ACC combination switch/distance switch (C).

5. Install the parts in the reverse order of removal.
