CMP Sensor A Replacement

CMP Sensor A Replacement

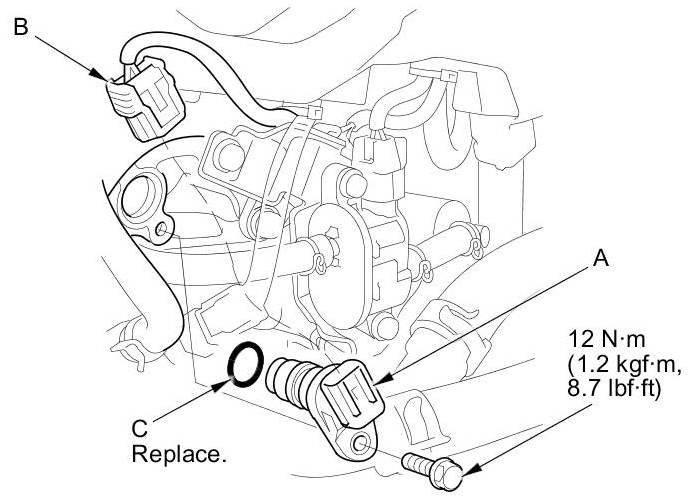

1. Disconnect the CMP sensor A connector (B).

2. Remove CMP sensor A from the intake camshaft side of the cylinder head.

3. Install the parts in the reverse order of removal with a new O-ring (C).
