Keyless Entry: Service and Repair

Keyless Buzzer Replacement

1. Remove the front bumper Front Bumper Removal / Installation.

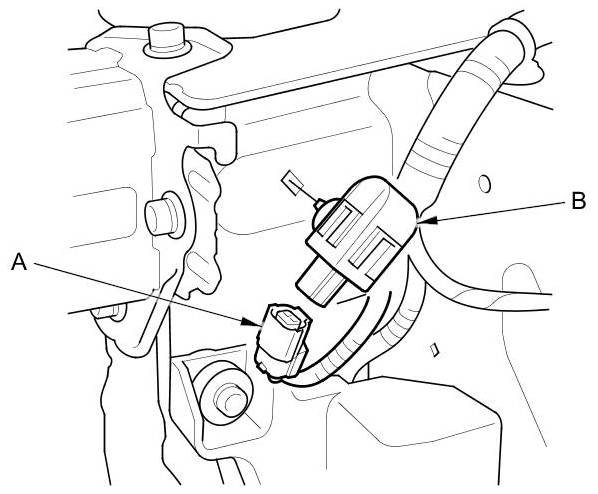

2. Disconnect the 2P connector (A) from the keyless buzzer (B).

3. Remove the keyless buzzer.

4. Install the buzzer in the reverse order of removal.
