Right Rear Power Window Switch Connector View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

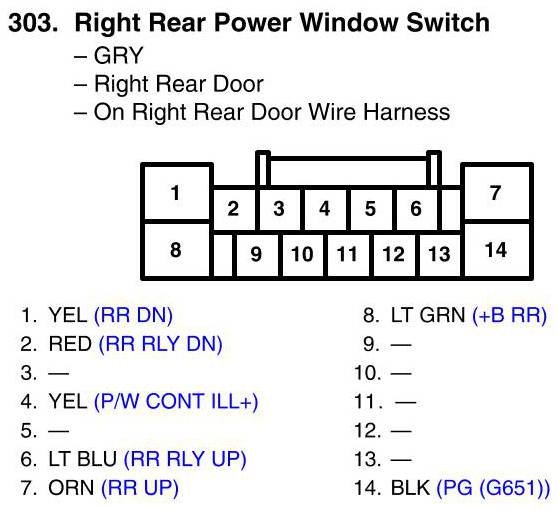

Right Rear Power Window Switch Connector View
