DTC P0741: Torque Converter Clutch Hydraulic Circuit Stuck OFF: Notes

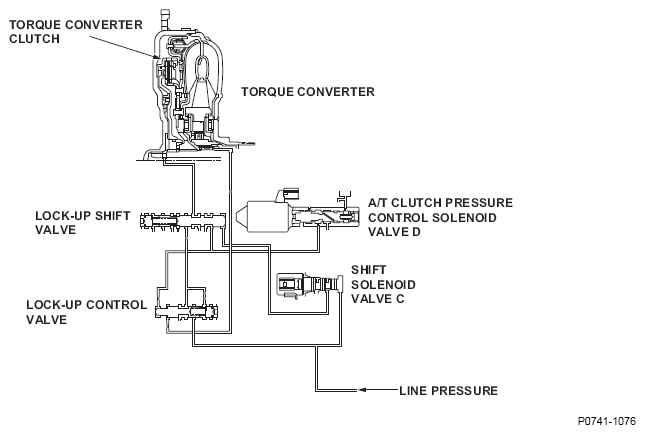

Fig 1: Torque Converter Clutch - System Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Torque converter clutch operation
A/T clutch pressure control solenoid valve D
ON (100 %)
OFF (0 %)
Shift solenoid valve C
ON (12 V)
Torque converter clutch: maximum duty
Torque converter clutch: minimum duty
OFF (0 V)
Torque converter clutch OFF
Torque converter clutch OFF
