Exploded View

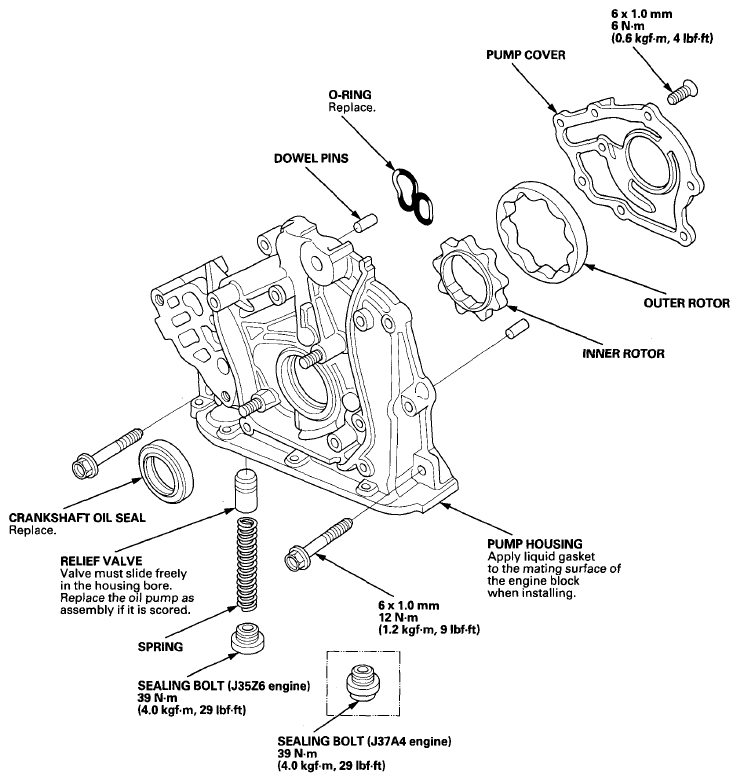

Fig 1: Exploded View Of Oil Pump With Torque Specifications
G08069189Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required
