Low Oil Pressure Indicator Circuit Diagram
>>
With Keyless Access System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
With Keyless Access System

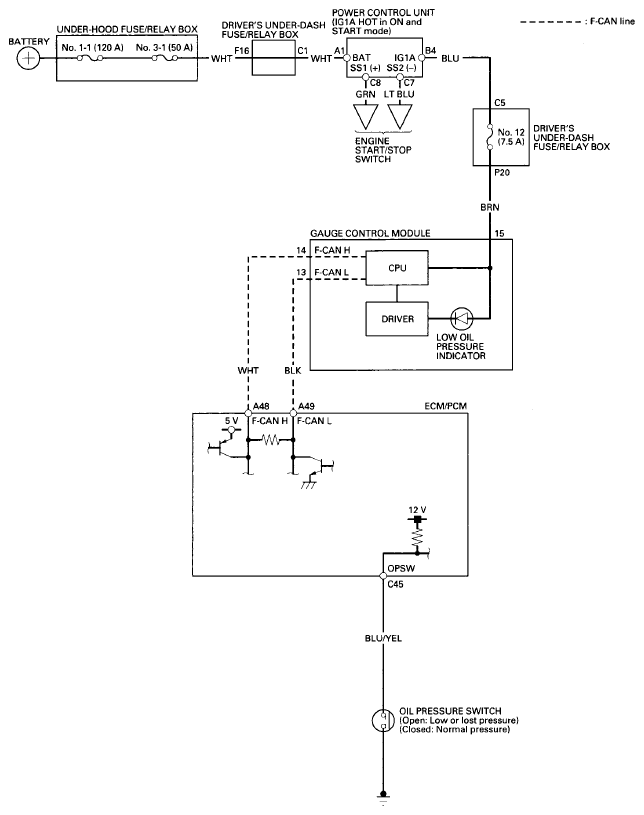

Fig 1: Low Oil Pressure Indicator - Circuit Diagram (With Keyless Access System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
