Circuit Diagram
>>
Without Keyless Access System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Without Keyless Access System

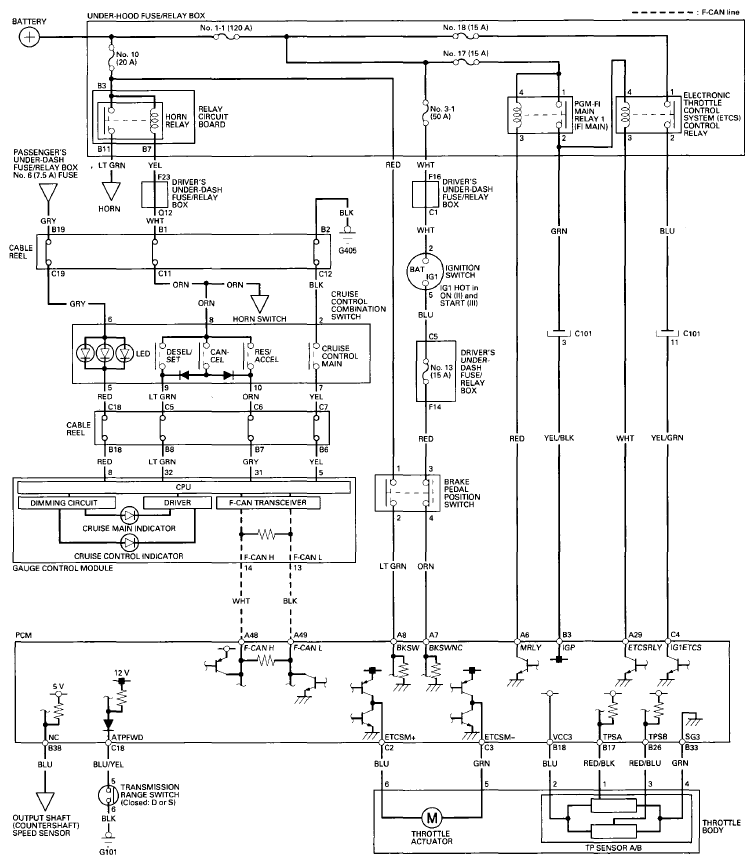

Fig 1: Cruise Control System Circuit Diagram (Without Keyless Access System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
