Connector Locations




Fuse/Relay Box Connector Locations

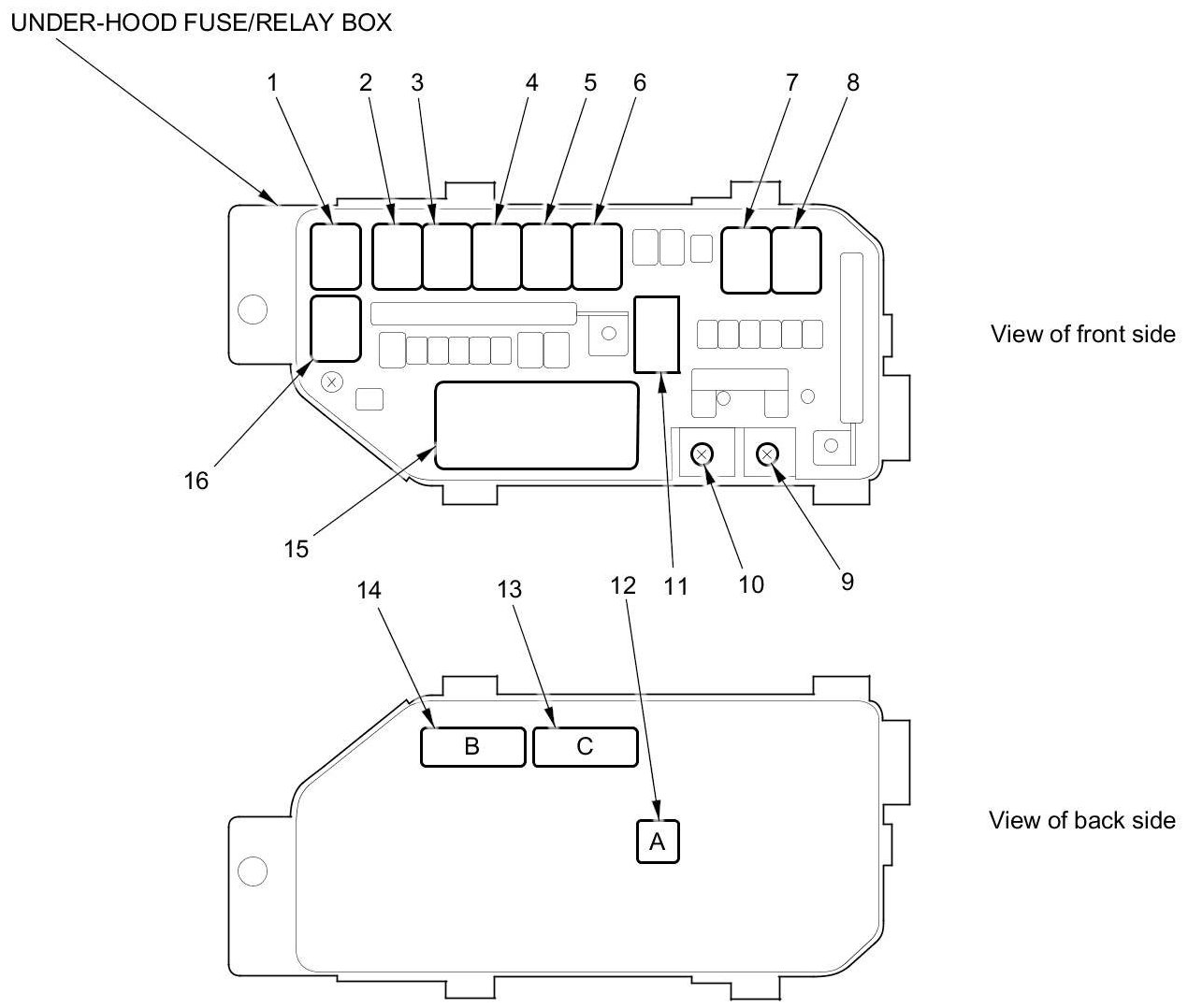

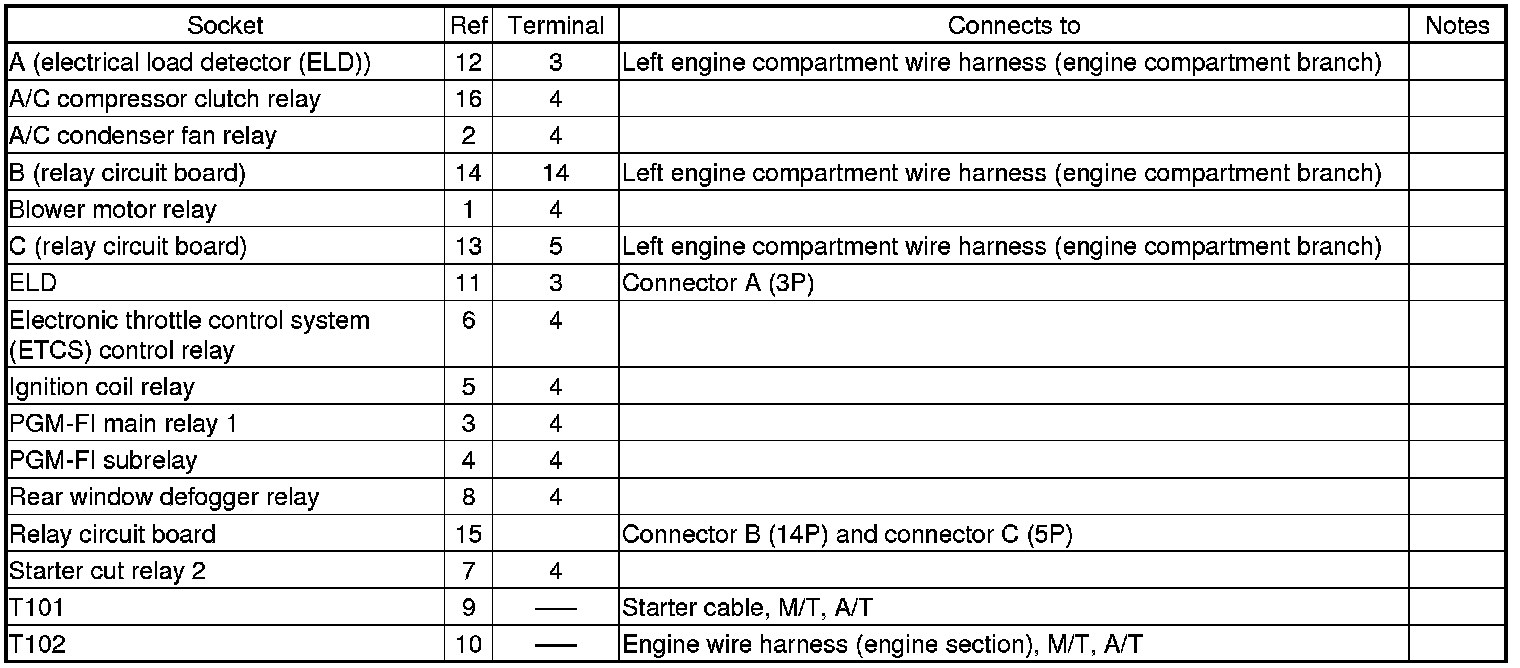

Under-Hood Fuse/Relay Box

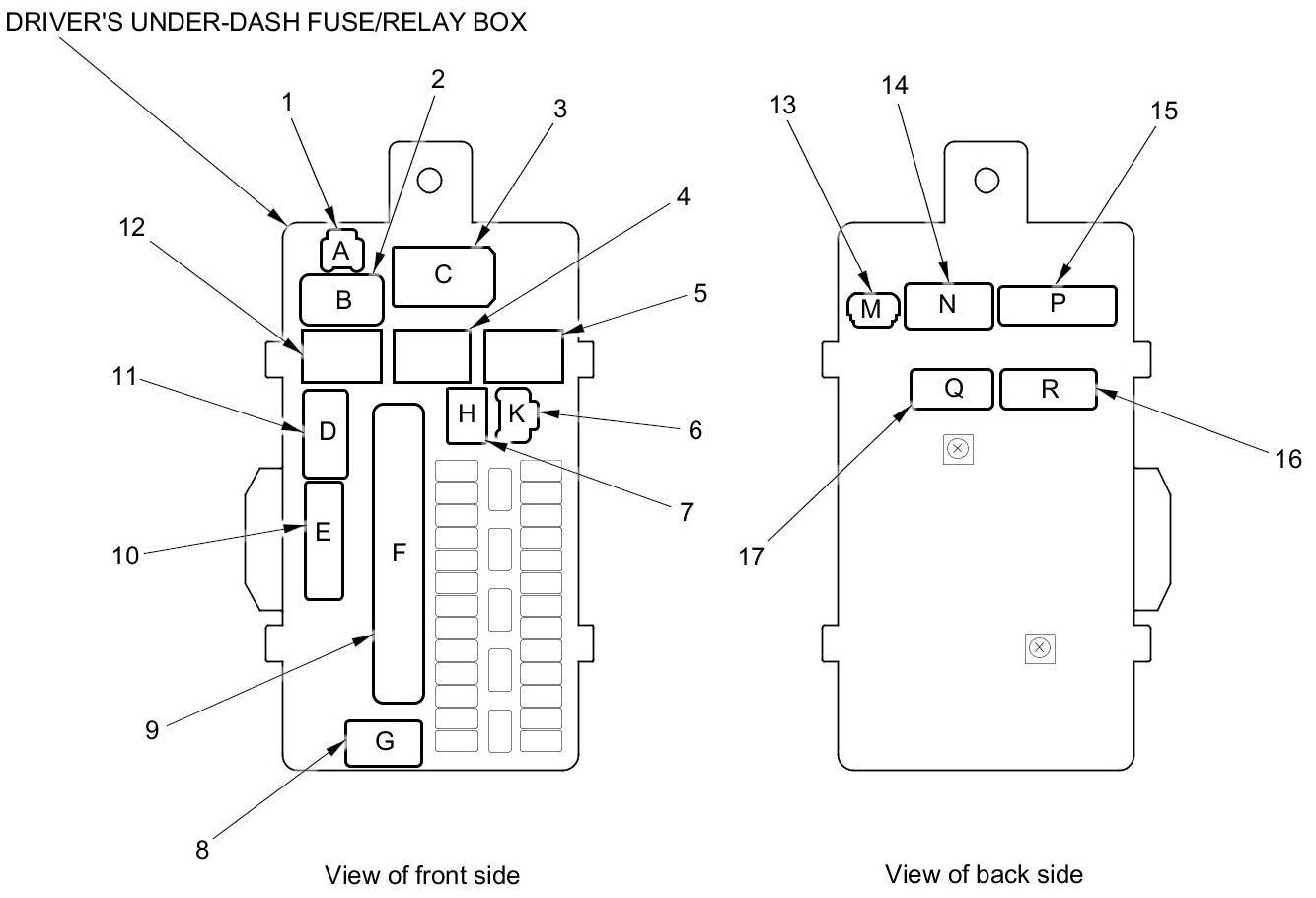

Driver's Under-Dash Fuse/Relay Box

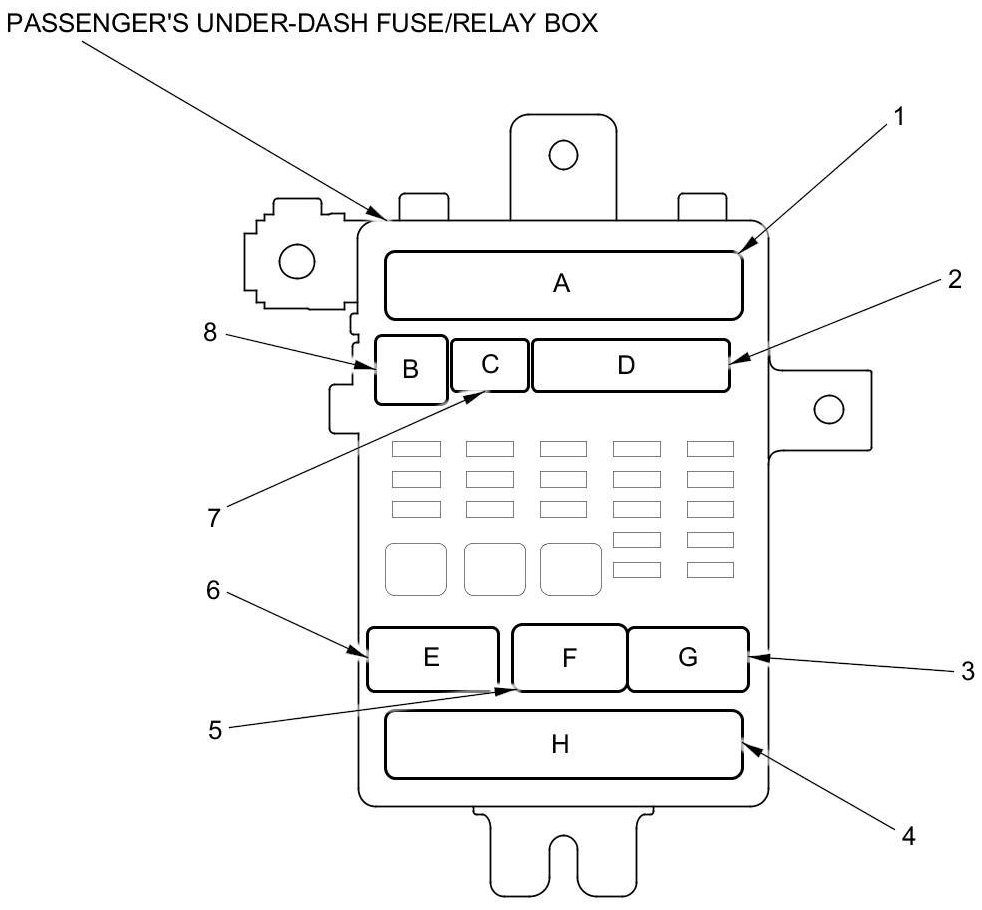

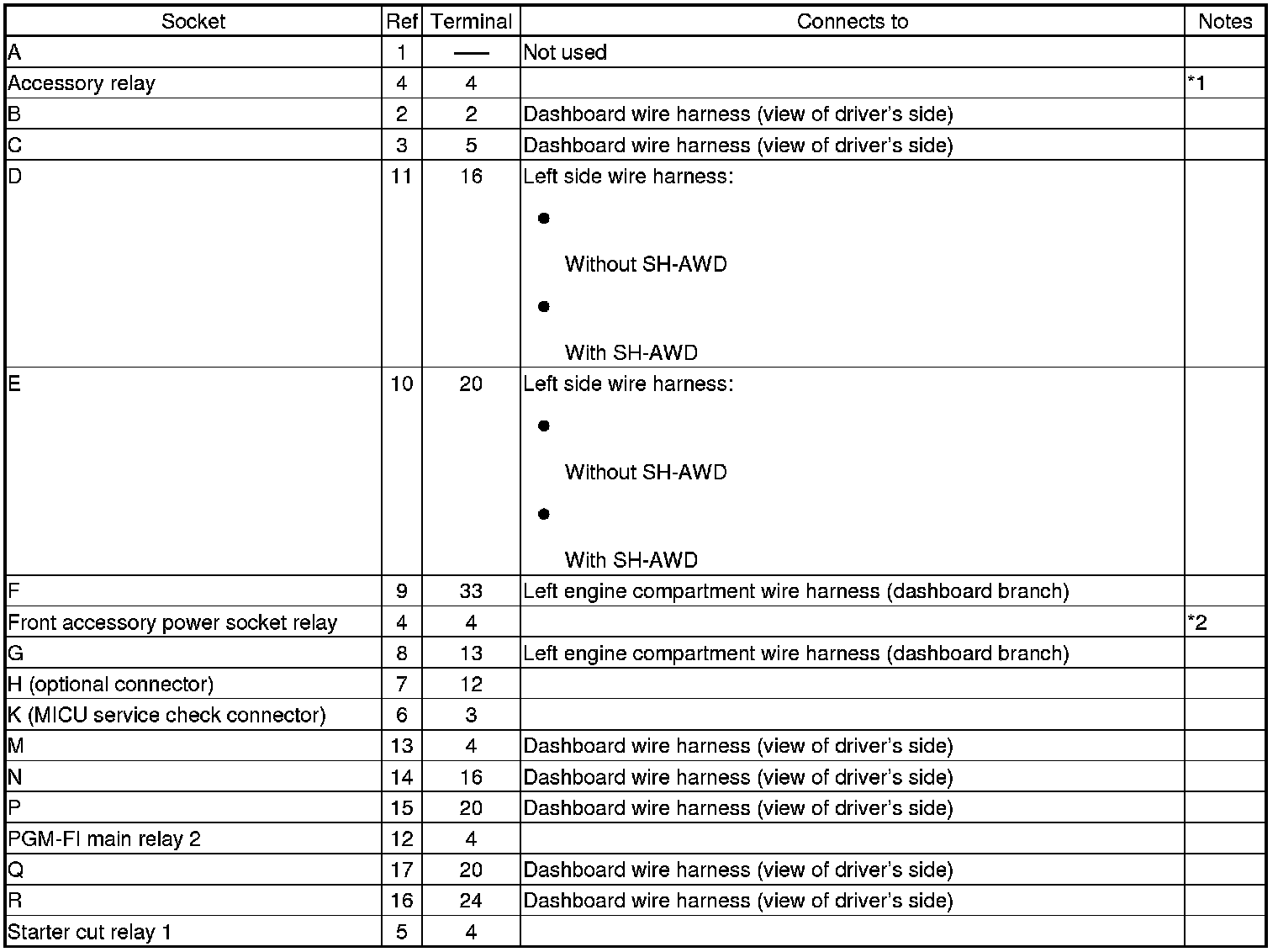

Passenger's Under-Dash Fuse/Relay Box
