Audio-HVAC Display Unit (without Navigation) Connector View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

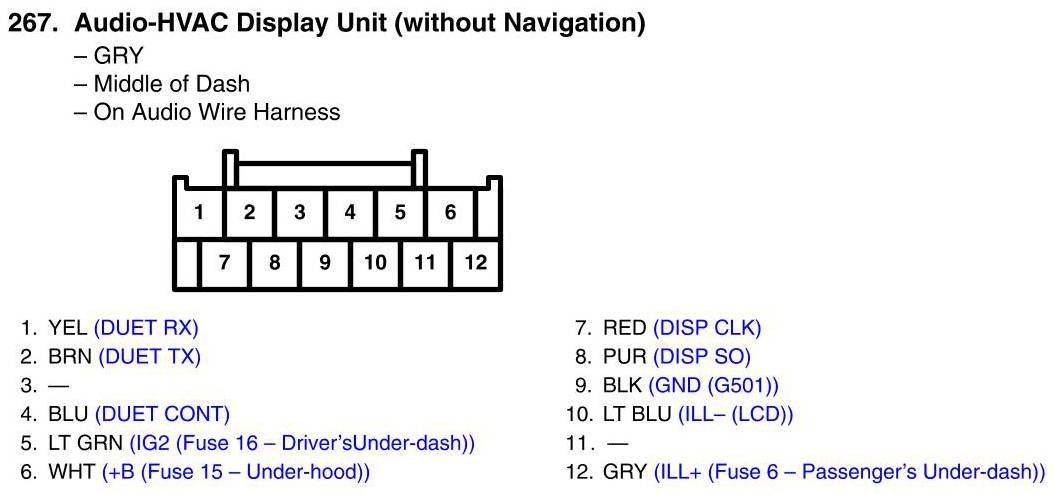

Audio-HVAC Display Unit (without Navigation) Connector View
