Front Strake Replacement




Front Strake Replacement

NOTE: Take care not to scratch the body.

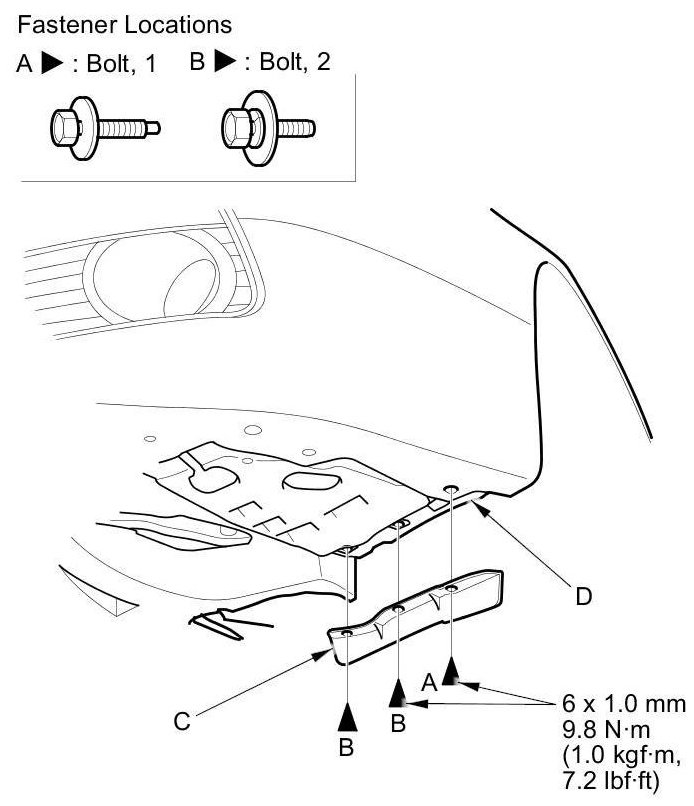

1. Remove the bolts (A, B). Release the front strake (C) from the front inner fender (D), then remove it.





2. Install the strake in the reverse order of removal.
