Front Bumper Strake Replacement




Front Bumper Strake Replacement

NOTE: Take care not to scratch the bumper.

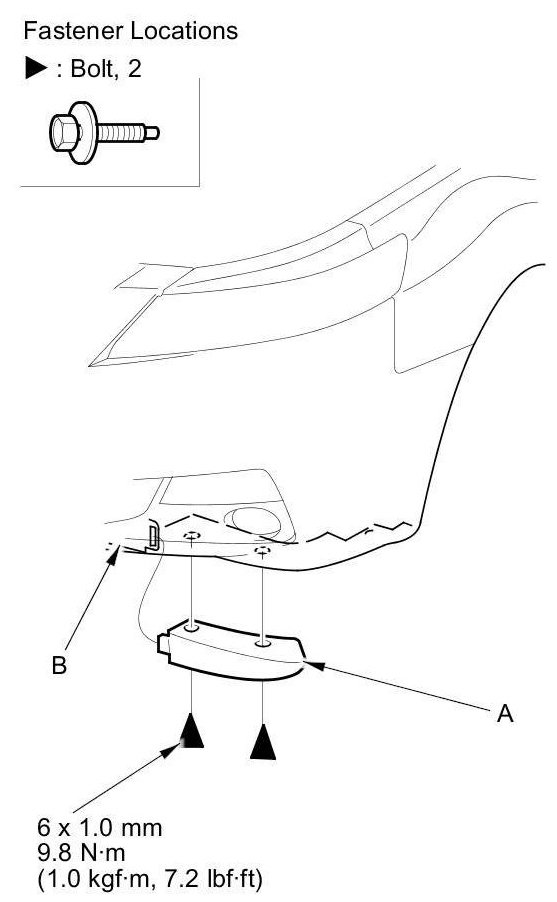

1. Remove the bolts. Release the front bumper strake (A) from the front air guide plate (B), then remove it.





2. Install the strake in the reverse order of removal.
