Line Pressure Switch Replacement

  1. Do the battery removal procedure (see REMOVAL ).
  2. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  3. Remove the battery base (see step  9 ).
  4. Disconnect the line pressure switch connector, and remove the line pressure switch (A) and the sealing washer (B).

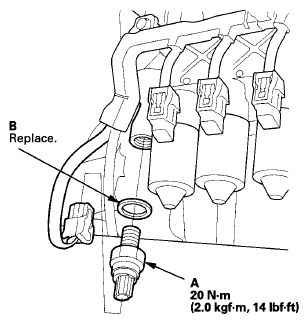

    Fig 1: Removing Line Pressure Switch And Sealing Washer With Torque Specifications
    G07362332Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install a new line pressure switch and a new sealing washer, and tighten the switch.
  6. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  7. Install the battery base (see step  79 ).
  8. Install the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  9. Do the battery installation procedure (see INSTALLATION ).
