Roof Console Connector End View (View 414)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Roof Console Connector End View (View 414)
GRY
Front of roof
On roof wire harness

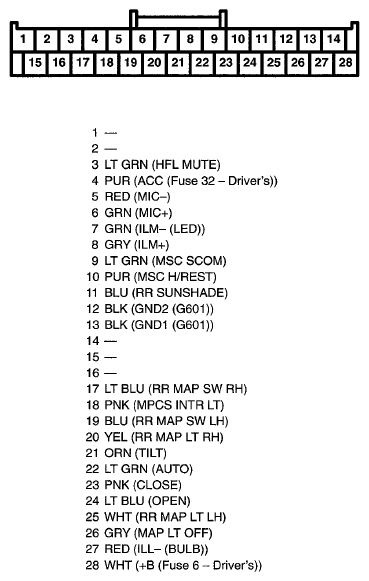

Fig 1: Roof Console Connector Terminals (View 414)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
