C701 Connector End View (View 395)

WHT
Left side of trunk
Connects left side wire harness (rear branch) to rear wire harness

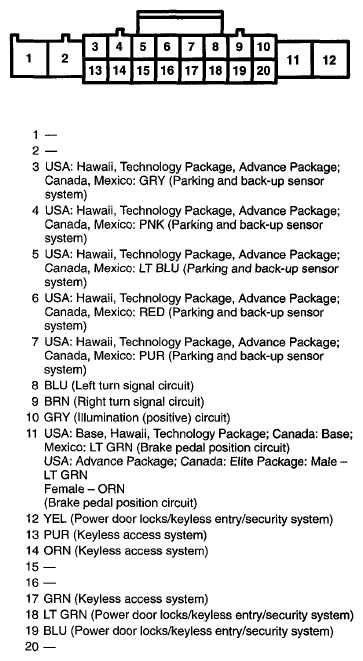

Fig 1: C701 Connector Terminals (View 395)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
