C501 Connector End View (View 389)

WHT
Under middle of dash
Connects PCM wire harness to dashboard wire harness (right branch)

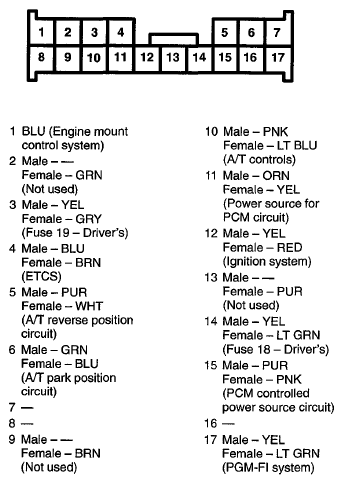

Fig 1: C501 Connector Terminals (View 389)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
