C201 Connector End View (View 372)
WHT
Behind right kick panel
Connects engine compartment wire harness (right branch) to dashboard wire harness (right branch)

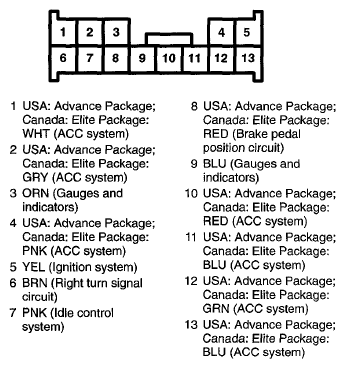

Fig 1: C201 Connector Terminals (View 372)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
