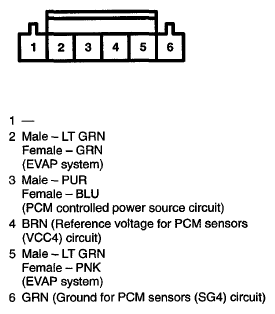

C659 Connector End View (View 285)
- WHT
- Behind rear seat
- Connects right side wire harness (rear branch) to floor sub-harness
Courtesy of AMERICAN HONDA MOTOR CO., INC.
