C602 Connector End View (View 420)

• WHT
• Behind left kick panel
• Connects dashboard wire harness (left branch) to left side wire harness (front branch)

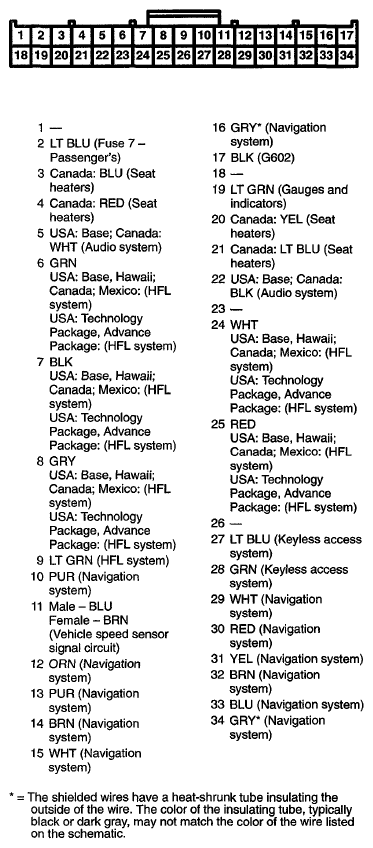

  Fig 1: C602 Connector Terminals (View 420)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
