Shift Lock Stop/Shift Lock Stop Cushion Replacement

Shift Lock Stop/Shift Lock Stop Cushion Replacement

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.

1. Remove the shift lock solenoid assembly Service and Repair.

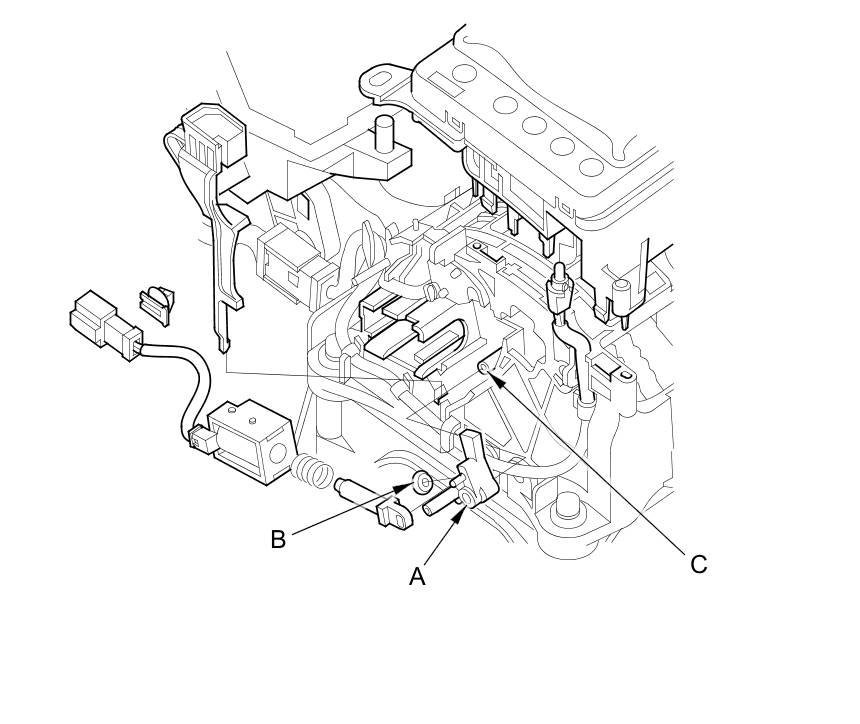

2. Remove the shift lock stop (A) and shift lock stop cushion (B), and replace the shift lock stop and/or shift lock stop cushion.





3. Apply silicone grease to the pin (C) on the shift lever bracket, and install the shift lock stop over the pin.

4. Install the shift lock solenoid assembly Service and Repair.
