Keyless Entry: Service and Repair

Keyless Buzzer Replacement

1. Remove the rear bumper Service and Repair.

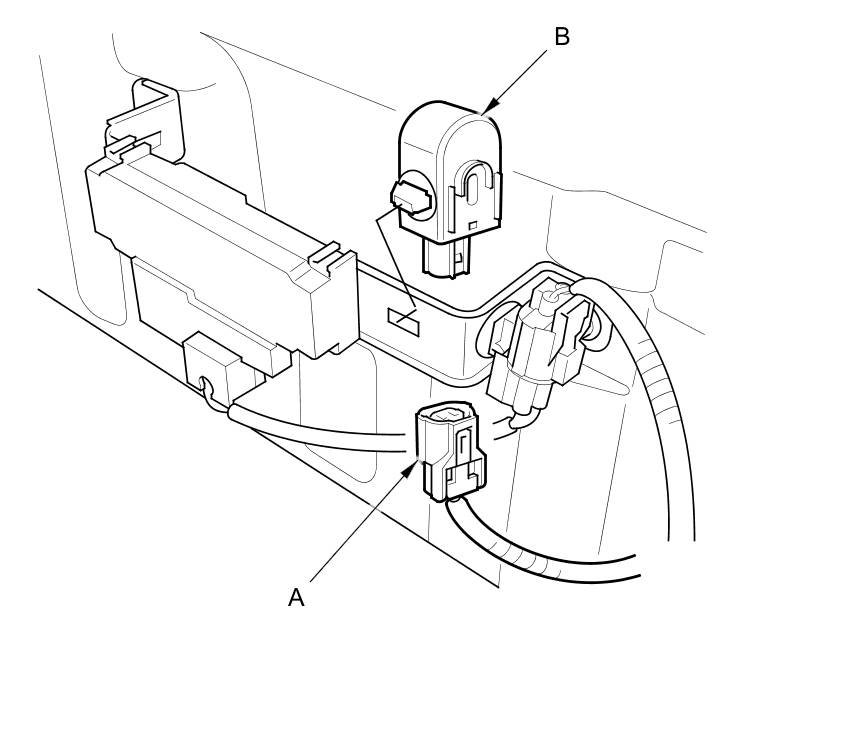

2. Disconnect the 2P connector (A) from the keyless buzzer (B), then remove the keyless buzzer.

3. Install the buzzer in the reverse order of removal.
