Wiper/Washer Switch Test/Replacement

Wiper/Washer Switch Test/Replacement

1. Remove the steering column covers Service and Repair.

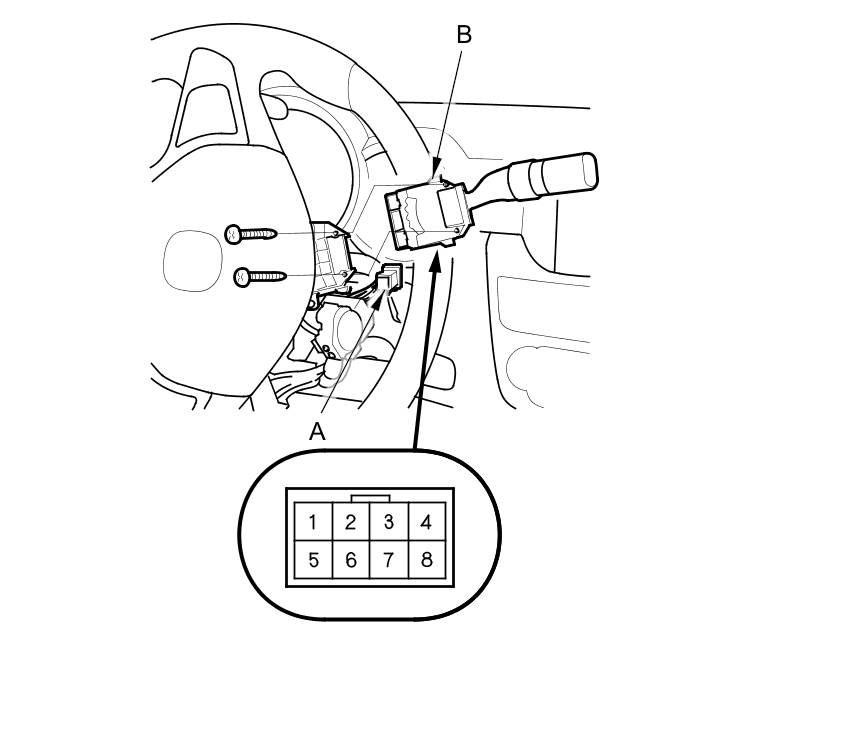

2. Disconnect the 8P connector (A) from the wiper/washer switch (B).






3. Remove the two screws, then pull out the wiper/washer switch.

4. Check for continuity between the terminals in each switch position according to the table.

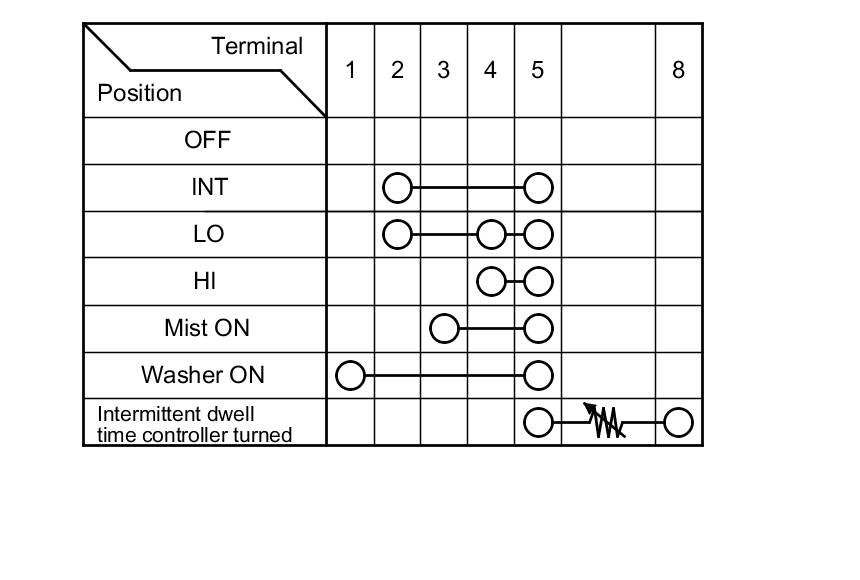

Windshield

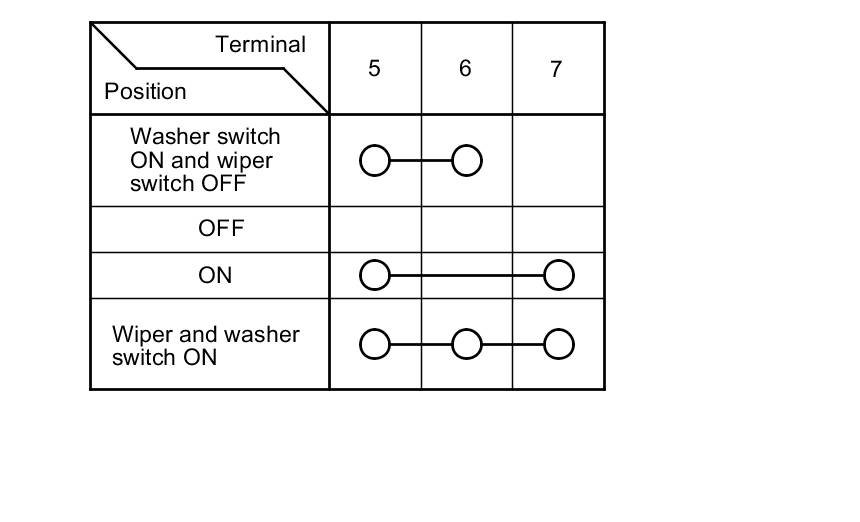

Rear window





5. If the continuity is not as specified, replace the switch.
