IAT Sensor 2 Replacement
IAT Sensor 2 Replacement
1. Remove the charge air cooler cover.

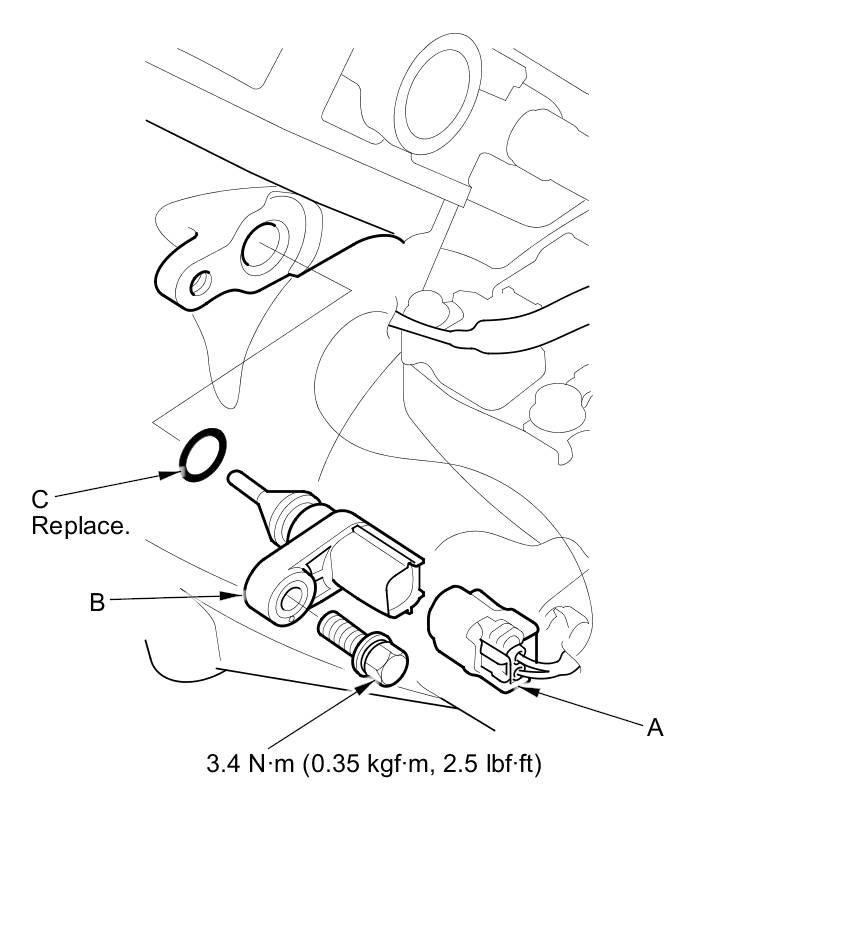

2. Disconnect the IAT sensor 2 connector (A).
3. Remove IAT sensor 2 (B).
4. Install the parts in the reverse order of removal with a new O-ring (C).
