ACC Cut Relay And IG2 Cut Relay Connector View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

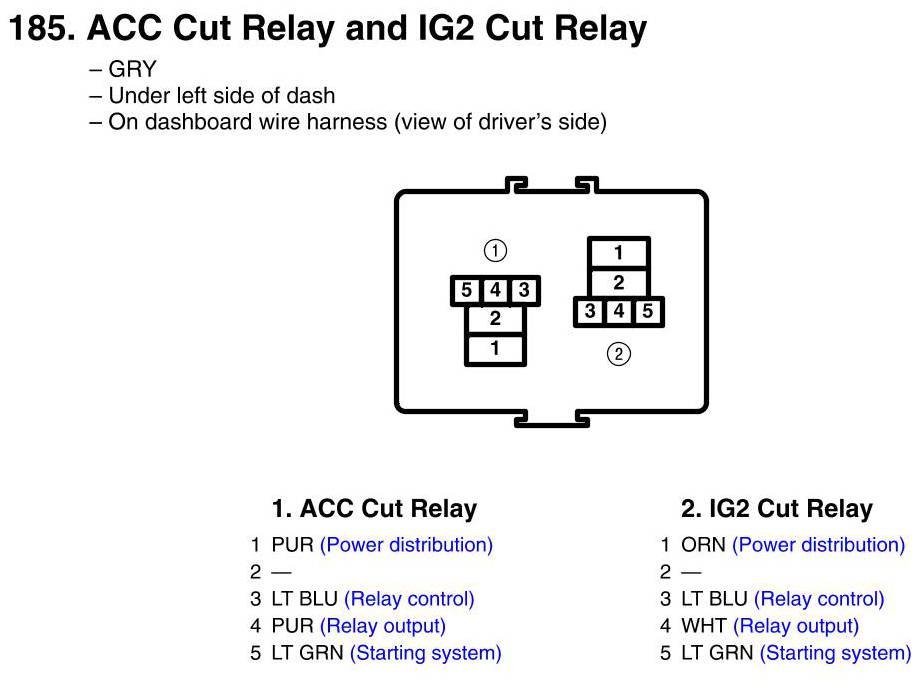

ACC Cut Relay And IG2 Cut Relay Connector View
