Structural Brace: Service and Repair

Rear Damper Gusset Replacement

NOTE: Take care not to scratch the body.

1. Remove these items:

- Cargo area side trim panel Interior Trim Removal / Installation - Rear Side Area
- Side floor spacer

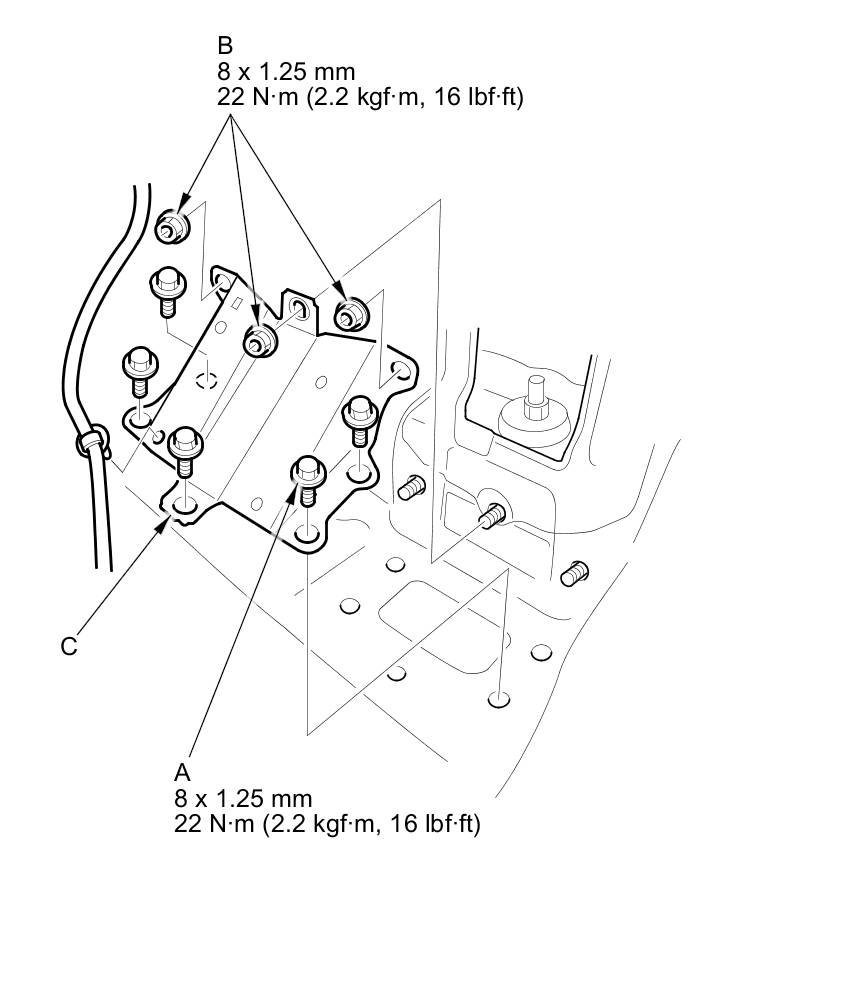

2. Remove the bolts (A) and the nuts (B), then remove the rear damper gusset (C).





3. Install the gusset in the reverse order of removal.
