Front Fender: Service and Repair

Lower Front Fender Panel Replacement

NOTE:

- When removing components, use the trim tools or equivalent.
- Take care not to scratch the body.
- Put on gloves to protect your hands.

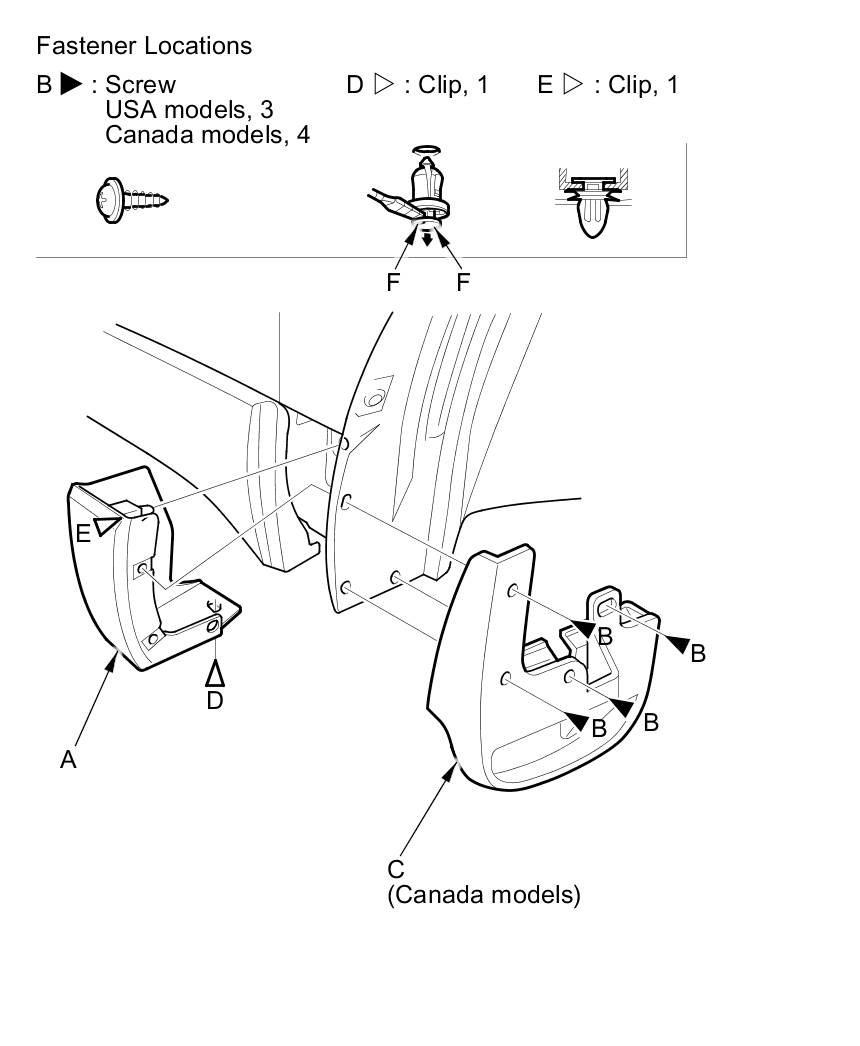

1. Remove the lower front fender panel (A).

1. Remove the screws (B), and on Canada models, remove the front splash guard (C).

2. Remove the clip (D), then remove the lower front fender panel by detaching the clip (E).

NOTE: To release the clip D, pry up on the center pin at the notch (F).





2. Install the panel in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
