Back-up Light Switch Test/Replacement

WARNING: This page is about a different variant/trim than selected.

NOTE: Use fender covers to avoid damaging painted surfaces.

Remove the air intake duct splash separator (A).

Fig 1: Identifying Air Intake Duct Splash Separator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
Remove the harness clamps (A), then remove the battery base (B).

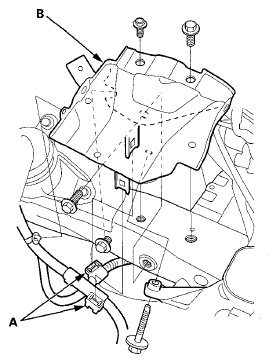

Fig 2: Identifying Battery Base And Harness Clamps
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove transmission hanger A.

Fig 3: Identifying Transmission Hanger
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the back-up light switch 2P connector (A).

Fig 4: Identifying Back-Up Light Switch 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between back-up light switch 2P connector terminals No. 1 and No. 2. There should be continuity only when the shift lever is in reverse.
- If the test result is OK, go to step 9.
- If the test result is not OK, go to step 7.

  Fig 5: Checking Continuity Between Back-Up Light Switch 2P Connector Terminals No. 1 And 2
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the back-up light switch (A). Check for continuity between back-up light switch 2P connector terminals No. 1 and No. 2. There should be continuity when the actuator (B) is pressed, and no continuity when the actuator is released.
- If the test result is OK, check the reverse shift mechanism in the transmission.
- If the test result is not OK, replace the back-up light switch.

  Fig 6: Back-Up Light Switch And Actuator Terminals With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

  Fig 7: Checking Continuity Between Back-Up Light Switch 2P Connector Terminals No. 1 And 2
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply liquid gasket (P/N 08717-0004,08718-0001, 08718-0012, 08718-0003, or P/N 08718-0009) to the threads of the back-up light switch, and install it on the transmission housing.
Connect the back-up light switch 2P connector.
Install transmission hanger A.

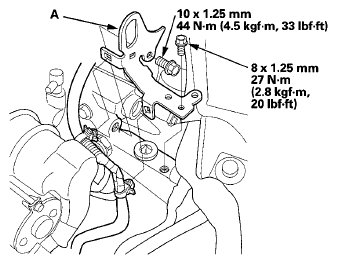

Fig 8: Transmission Hanger With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the battery base (A) and the harness clamps (B).

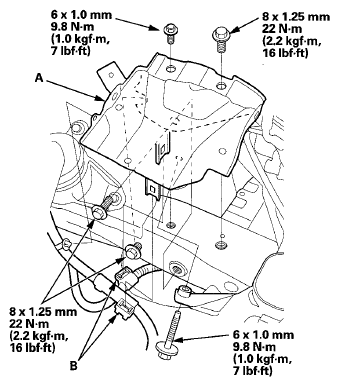

Fig 9: Battery Base And Harness Clamps With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
Install the air intake duct splash separator (A). A,
