Driver's Under-Dash Fuse/Relay Box Connector End View (View 330)

Behind Left Kick Panel
Connector A (Not Used)

Connector B
- LT GRN
- On Dashboard Wire Harness

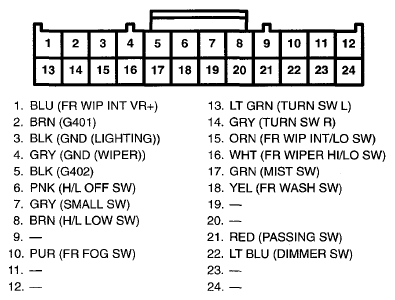

  Fig 1: Driver's Under-Dash Fuse/Relay Box Connector Terminal (Connector B) (View 330)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector C
- LT GRN
- On Dashboard Wire Harness

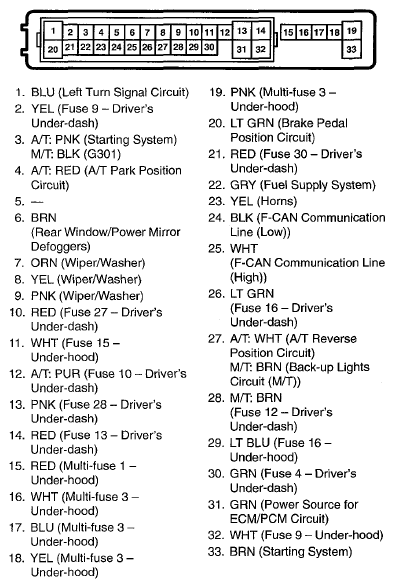

  Fig 2: Driver's Under-Dash Fuse/Relay Box Connector Terminal (Connector C) (View 330)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector D
- LT GRN
- On Left Side Wire Harness

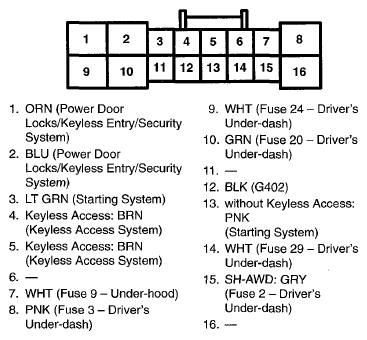

  Fig 3: Driver's Under-Dash Fuse/Relay Box Connector Terminal (Connector D) (View 330)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector E
- LT GRN
- On Left Side Wire Harness

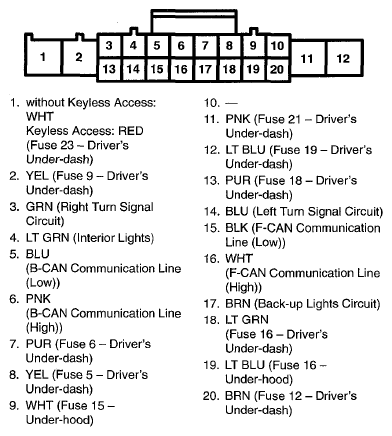

  Fig 4: Driver's Under-Dash Fuse/Relay Box Connector Terminal (Connector E) (View 330)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector F
- LT GRN
- On Left Engine Compartment Wire Harness

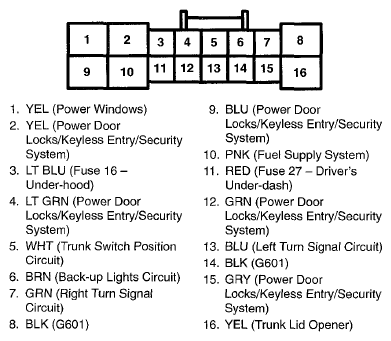

  Fig 5: Driver's Under-Dash Fuse/Relay Box Connector Terminal (Connector F) (View 330)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector G
- LT GRN
- On Left Engine Compartment Wire Harness

  Fig 6: Driver's Under-Dash Fuse/Relay Box Connector Terminal (Connector G) (View 330)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector H (Option Connector)

Fig 7: Driver's Under-Dash Fuse/Relay Box Connector Terminal (Connector H) (View 330)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Remote Starting System (Acura Accessory: Remote Starting System)
- N/A
- On Remote Starting Wire Harness (Acura Accessory: Remote Starting System)
Connector K (MICU Service Check Connector)

Connector M
- YEL
- On Dashboard Wire Harness

  Fig 8: Driver's Under-Dash Fuse/Relay Box Connector Terminal (Connector M) (View 330)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector N
- LT GRN
- On Dashboard Wire Harness

  Fig 9: Driver's Under-Dash Fuse/Relay Box Connector Terminal (Connector N) (View 330)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector P
- LT GRN
- On Dashboard Wire Harness

  Fig 10: Driver's Under-Dash Fuse/Relay Box Connector Terminal (Connector P) (View 330)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector Q (Driver's MICU)
- LT GRN
- On Dashboard Wire Harness

  Fig 11: Driver's Under-Dash Fuse/Relay Box Connector Terminal (Connector Q) (View 330)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector R (Driver's MICU)
- LT GRN
- On Dashboard Wire Harness

  Fig 12: Driver's Under-Dash Fuse/Relay Box Connector Terminal (Connector R) (View 330)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
