DTC P2714: A/T Clutch Pressure Control Solenoid Valve D Stuck OFF: Notes

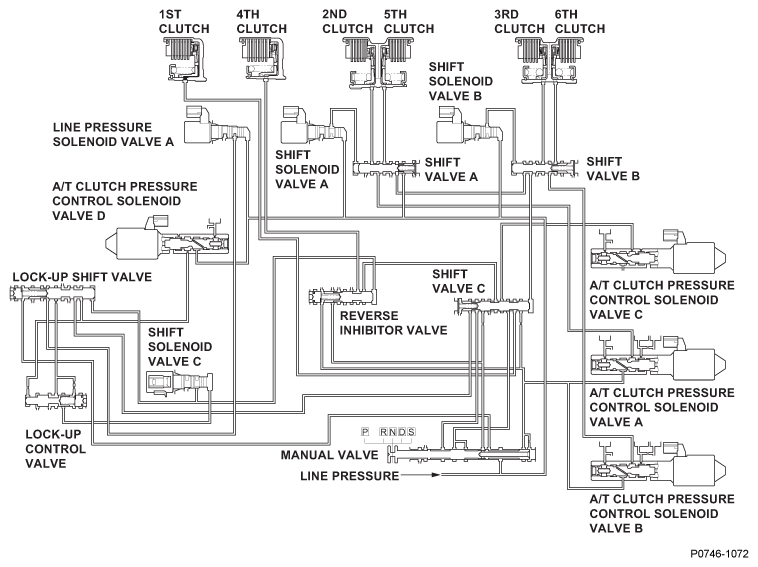

HYDRAULIC PRESSURE SUPPLY TO CLUTCH BY SHIFT SOLENOID VALVE OUTPUT
| D In-gear | 1st | R In-gear | Reverse | |
|---|---|---|---|---|
| Shift solenoid valve A | ON | ON | ON | OFF |
| Shift solenoid valve B | OFF | ON | OFF | OFF |
| Shift solenoid valve C | OFF | OFF | ON | ON |
| 1st clutch | CPCD | LINE | - | - |
| 4th clutch | - | - | CPCD | LINE |
| CPCD: A/T clutch pressure control solenoid valve D pressure LINE: Line pressure |
||||
