C103 Connector End View (View 400)

BLK
Left side of engine compartment
Connects engine wire harness (rear branch) to PCM wire harness

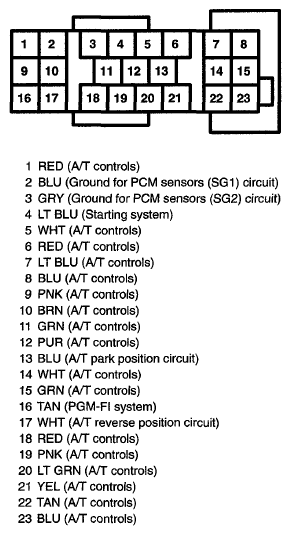

Fig 1: C103 Connector Terminals (View 400)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
