Power Distribution Relay
>>
Front Accessory Power Socket Relay, Cigarette Lighter Relay And Console Accessory Power Socket Relay Connector View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

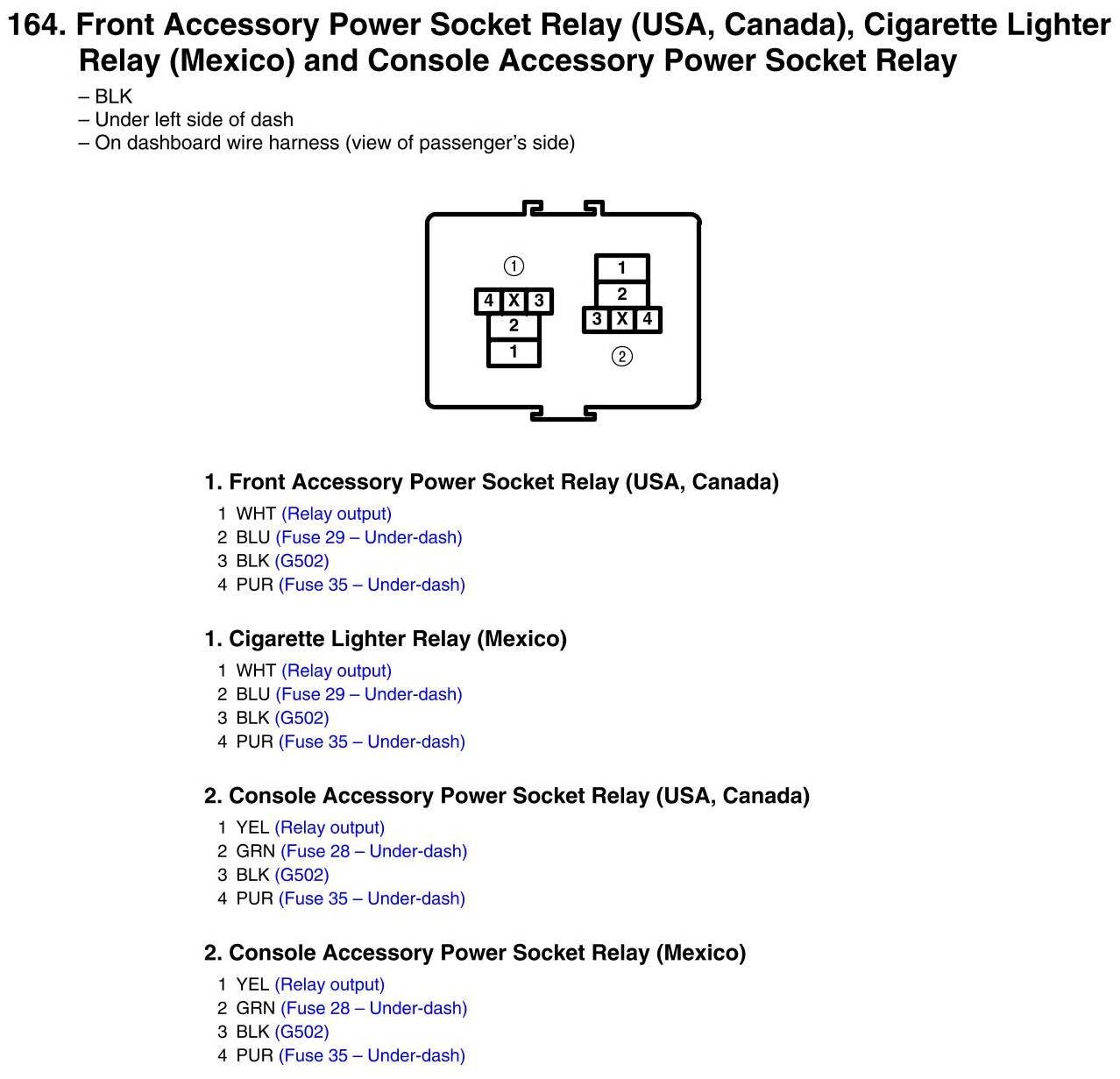

Front Accessory Power Socket Relay, Cigarette Lighter Relay And Console Accessory Power Socket Relay Connector View
