Engine Compartment

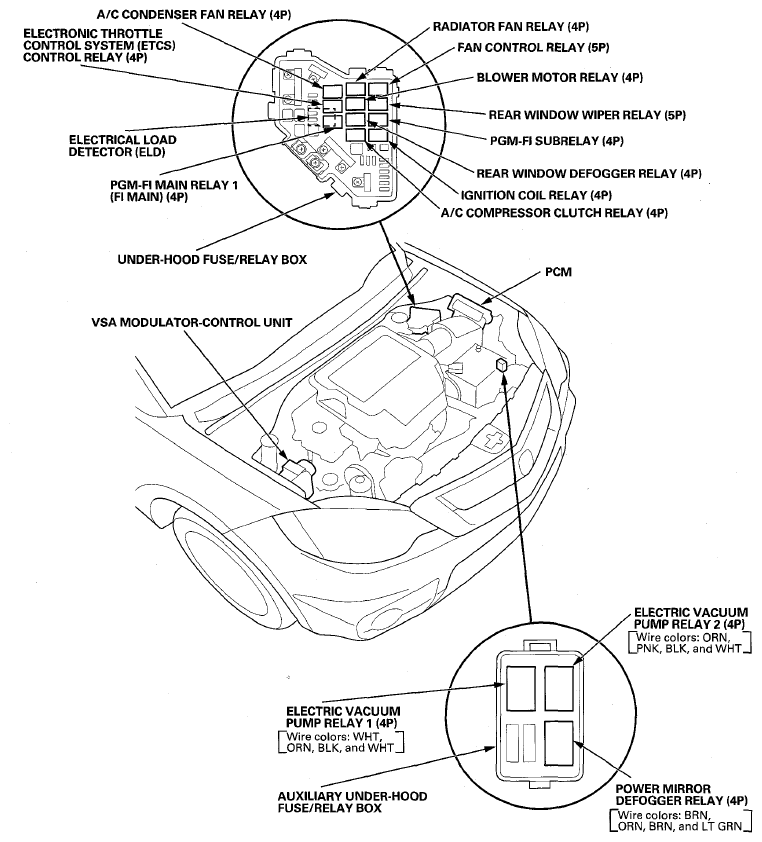

Fig 1: Relay And Control Unit Locations Of Engine Compartment
G08061067Courtesy of AMERICAN HONDA MOTOR CO., INC.
