Front Evaporator Temperature Sensor Replacement

  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the TPMS control unit (see TPMS CONTROL UNIT REPLACEMENT ).
  3. Disconnect the connector (A) from the front evaporator temperature sensor (B), then detach the connector clip (C). Remove the self-tapping screw and the front evaporator temperature sensor.

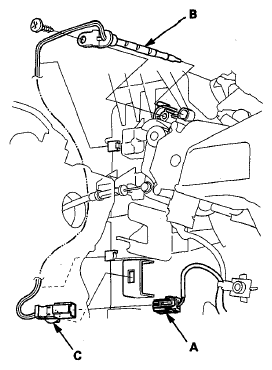

    Fig 1: Locating Connector, Front Evaporator Temperature Sensor And Connector Clip
    G08058036Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the sensor in the reverse order of removal.
