Line Pressure Switch Replacement

  1. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  2. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  3. Remove the intake air duct (see step  8 on TRANSMISSION REMOVAL ).
  4. Remove the battery heat shield (see step  9 on TRANSMISSION REMOVAL ).
  5. Remove the auxiliary under-hood fuse/relay box (see step  10 on TRANSMISSION REMOVAL ).
  6. Remove the battery base (see step  11 on TRANSMISSION REMOVAL ).
  7. Disconnect the line pressure switch connector, and remove the line pressure switch (A) and the sealing washer (B).

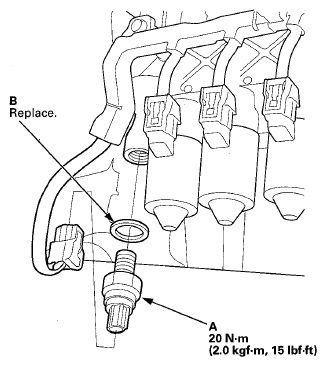

    Fig 1: Locating Line Pressure Switch And Sealing Washer With Torque Specifications
    G08074606Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the line pressure switch and a new sealing washer, and tighten the switch.
  9. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  10. Install the battery base (see step  66 on TRANSMISSION INSTALLATION ).
  11. Install the auxiliary under-hood fuse/relay box (see step  67 on TRANSMISSION INSTALLATION ).
  12. Install the battery heat shield (see step  68 on TRANSMISSION INSTALLATION ).
  13. Install the intake air duct (see step  69 on TRANSMISSION INSTALLATION ).
  14. Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  15. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
