Steering Control Module: Service and Repair




ECPS Control Unit Removal/Installation

1. Remove the driver's dashboard undercover Driver's Dashboard Undercover Removal/Installation.

2. Remove the driver's front door sill trim Service and Repair.

3. Remove the driver's kick panel Service and Repair.

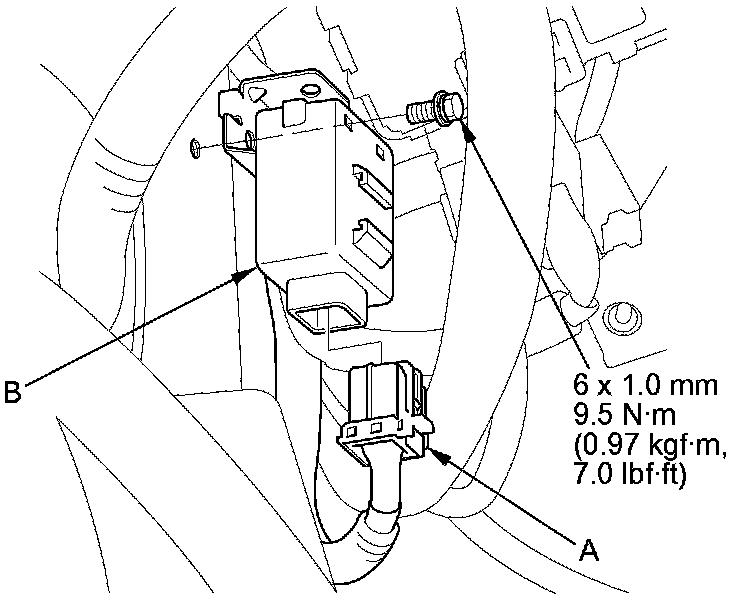

4. Disconnect the connector (A) from the ECPS control unit (B), then remove the control unit.





5. Install the ECPS control unit in the reverse order of removal.
