Keyless Access RF Unit 1 Replacement

Keyless Access RF Unit 1 Replacement

1. Remove the driver's and passenger's center console trim Center Console Removal/Installation.

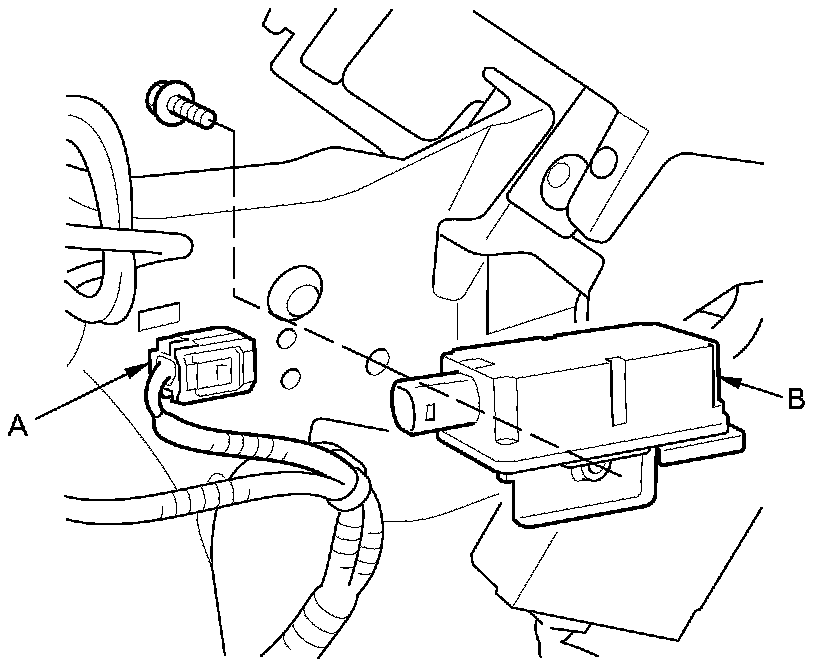

2. Disconnect the 3P connector (A) from RF unit 1 (B).

3. Remove the bolt and RF unit 1.

4. Install the unit in the reverse order of removal.
